Tough Shell Explosion Proof LED Lamp High Brightness EX Proof Lighting

Tough Shell Explosion Proof LED Lamp High Brightness EX Proof Lighting

explosion proof lighting

industrial explosion proof lighting

Place of Origin:

China

Brand Name:

HKV

Certification:

CE,ROHS, ATEX

Model Number:

HKV-G20/30/40

Contact Us

Request A Quote
Product Details
Product Power:
20/30/40W
Input Voltage:
85-265V
Frequency Range:
50~60Hz
Power Factor:
0.95
Ex-mark:
Ex Demb II C T6 Gb
Protection Level:
IP66
Anticorrosion Grade:
WF2
Color Rendering Index:
Ra>85
Luminous Efficiency:
≥130lm/W
Work Temperature:
-55℃~+60℃
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiated
Packaging Details
Carton
Delivery Time
5-7days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
5000/week
Product Description

Tough Shell Explosion Proof LED Lamp High Brightness EX Proof Lighting

Parameter:



Model HKV-G20/30/40W HKV-G50/60/70W HKV-G80/100/120W HKV-G150
Power 20W/30W/40W 50/60/70W 80W/100/120W 150W
Ex-mark Ex demb II C T6 Gb Ex demb II C T6 Gb Ex demb II C T6 Gb II C T6 Gb
IP Rating IP66 IP66 IP66 IP66
Protection grade WF2 WF2 WF2 WF2
Input voltage 85~265V 85~265V 85~265V 85~265V
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Light Efficiency >130lm/W >130lm/W >130lm/W >130lm/W
CCT 2700~6500K 2700~6500K 2700~6500K 2700~6500K
Lifespan 50000hrs 50000hrs 50000hrs 50000hrs
Power Factor PF>0.95 PF>0.95 PF>0.95 PF>0.95
Ambient temp -55℃~+60℃ -55℃~+60℃ -55℃~+60℃ -55℃~+60℃
Dimensions 220x220x270mm 260x260x285mm 320x320x310mm 330x330x310mm
Net Weight 3.5kg 5.4kg 9.4kg 12.8kg



































Product Features:
1. High Power, high lumen, high quality
2. Save 80% more energy compared with traditional lighting fixtures
3. Easy to install and use, secure and reliable
4. No UV or RF interference, No mercury or lead
5. Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation
6. High quality, high efficiency, high CRI & luminous flux,
7. long life span>50000hrs
8. High brightness, low consumption, green for environment

Applications:

It is widely used in dangerous environment such as gas station, petroleum exploitation, oil refining, chemical industry, military industry, offshore oil platforms, oil tankers and other places for general lighting and operation lighting.

Description:

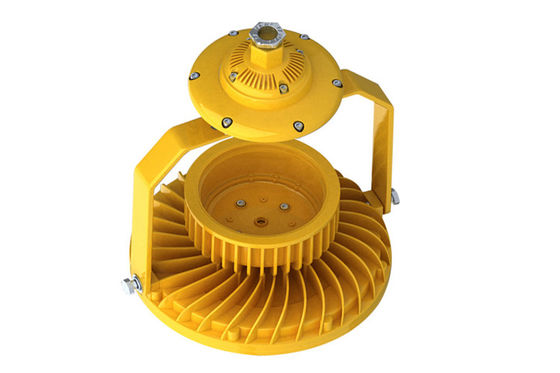

Tough Shell
· Made of strengthenen die casting aliminum alloy.the surface is disposed by high voltage electrostatic spary with unique design and excellent heat dispersion.
Thick Borosilicate Glass Mask
· 5mm thichness HBG
· Anti shock
· Geat Resistance
· Stability and luminous efficiency
· Enhance explosion proof performance
Heat Dispersion
· Fin thickness up to 6mm,high density of fin enhances the heat dispersion surface and speed the air flow, making sure the long lifespan up to 50000 hours.

Quality LED Source
High liminous efficiency
Less power consumption
Safe and reliabe
Long life span more than 50000 hours
Full sealed ,water and dust proof
Free maintenance

More Details
· Cable outlet G3/4
· Geat resistance silicon
· Finest screw
· Quality sealing plastic stripe



Beam angle:

Tough Shell Explosion Proof LED Lamp High Brightness EX Proof Lighting 0

Installation:

Tough Shell Explosion Proof LED Lamp High Brightness EX Proof Lighting 1

More options for shipping your cargoes:
1. By express: DHL,UPS,FEDEX,TNT,USPS etc. delivery time for 3-7 days.
2. Air freight: when your cargoes are more than 100kg, air freight will be more economical than express.
3. Sea freight: shipping by SEA is available after customer tells us the destination port.
4. Agent designated by client: please tell us the contact details of your shipping agent / forwarder.

FAQ:

1. How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.

2 . When will make delivery ?
A : Delivery Time
- Sample Order: 1-3 days after receipt of the full payment.
- Stock Order: 3-7days after receipt of the full payment
- OEM Order: 12-20days after receipt of the payment.

3. After-sales Service 3 year warranty for this kinds of products;
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.

4.Payment T/T, Western Union, L/C.

5. Transportation Transported by DHL, UPS, EMS, Fedex, Air freight. sea freight.

6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on mass production after test sample well

7. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
