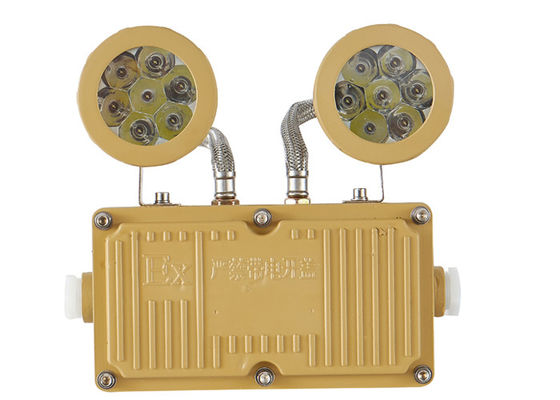

5W LED Industrial Emergency Light Energy Saving Dual Lite Emergency Light

China 5W LED Industrial Emergency Light Energy Saving Dual Lite Emergency Light supplier
5W LED Industrial Emergency Light Energy Saving Dual Lite Emergency Light supplier 5W LED Industrial Emergency Light Energy Saving Dual Lite Emergency Light supplier

Large Image :  5W LED Industrial Emergency Light Energy Saving Dual Lite Emergency Light

Product Details:

Place of Origin: China
Brand Name: HKV
Certification: EX/ATEX/IECEX/CE
Model Number: HKV22

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: Negotiated
Packaging Details: Carton
Delivery Time: 4-15Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/WEEK
Contact Now
Detailed Product Description
Product Power: 2x3W Input Voltage: 85-265V
Frequency Range: 50~60Hz IP Rating: IP65
Power Factor: 0.95 Ex-mark: Exd II B T6 Gb
Anticorrosion Grade: WF1 Emergency Power Voltage: 6V
Charging Time: 24h Emergency Start Up: 0.3s
Emergency Duration: ≥90min Cable Specification: 9~14mm

IP65 Explosion Proof Lamp Emergency Exit Light Emergency Led Lights Led Emergency Lighting

Part Number:
HKV22
Production Lead Time*:
7-15 Days
Shipping:
FOB CEHNGDU
Quantity:
1pc


Parameter:



Exit Signs Explosion Proof Emergency Exit Signs LED Emergency Lighting
Model Emergency light Exit Bidirectional Exit Left Exist Right Exist
Ex-mark II B T6 Gb  IIB T6 Gb II B T6 Gb II B T6 Gb II B T6 Gb
IP Rating IP54 IP65 IP65 IP65 IP65
Protection grade WF1 WF1 WF1 WF1 WF1
Input voltage 85~265V 85~265V 85~265V 85~265V 85~265V
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Driver Voltage 6V 6V 6V 6V 6V
Charging Time 24h 24h 24h 24h 24h
Emergency start 0.3s 0.3s 0.3s 0.3s 0.3s
Emergency time ≥120min ≥120min ≥120min ≥120min ≥120min
Ambient temp -55℃~+60℃ -55℃~+60℃ -55℃~+60℃ -55℃~+60℃ -55℃~+60℃
Dimensions 250x260x80mm 270x210x85mm 270x210x85mm 270x210x85mm 270x210x85mm
Net Weight 1.68kg 2.0kg 2.0kg 2.0kg 2.0kg







Feature:



1. Meet a criterion:G3B3836.1, GB3836.2, GB12476.1, IEC60079-0,IEC60079-1,


2. IEC61241-1, EN60079-0, EN60079-1, EN61241-1


3. Ex---proof Mark: Exd II BT6 Gb, Exd II CT6 Gb, DIP A21 TA, T6.


4. Lighting Source: LED 5W


5. Emergency Voltage: DC 3.6V


6. Protection grade:IP54, IP65


7. Corrosion-proof grade:WF1


8. Inlet Thread: G3/4"


9. Cable outer dia:9mm~14mm







Descripition:



1. Die-cast aluminium forming shell, treated by anti-corrosion electrostatic spraying.


2. Heat pipe riveting technology, combined with HDT technology and pressing technology, rapid heat conduction.


3. Innovation of light and thin louver radiator, air convection design, optimization of air duct, all-round three-dimensional heat dissipation.


4. Suitable for 60 and 120 angle pure aluminium reflector to meet professional lighting requirements.





Application:

1. Suitable for explosive gas environment Zone1 and Zone2.

2. Suitable for IIA,IIB,IIC explosive gas environment.

3. Suitable for Hazardous dust area: Zone20, Zone21, Zone22.

4. Can be used in the environment of temperature group for T5~T6.

5. Lighting source: LED.

6. Mainly used for exit signs and direction in emergency conditions.

7. Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.





Dimension(mm)&Fixture Installation:




    5W LED Industrial Emergency Light Energy Saving Dual Lite Emergency Light



     5W LED Industrial Emergency Light Energy Saving Dual Lite Emergency Light






Shipping:


1. FedEx/DHL/UPS/TNT for samples, Door-to-Door.


2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving.


3. Customers specifying freight forwarders or negotiable shipping methods.


4. Delivery Time: 3-7 days for samples; 10-15 days for batch goods.






FAQ:


1. How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.


2 . When will make delivery ?
A : Delivery Time
- Sample Order: 1-3 days after receipt of the full payment.
- Stock Order: 3-7days after receipt of the full payment
- OEM Order: 12-20days after receipt of the payment.


3. After-sales Service 3 year warranty for this kinds of products;
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.


4. Payment T/T, Western Union, L/C.


5. Transportation Transported by DHL, UPS, EMS, Fedex, Air freight. sea freight.


6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on mass production after test sample well


7. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
