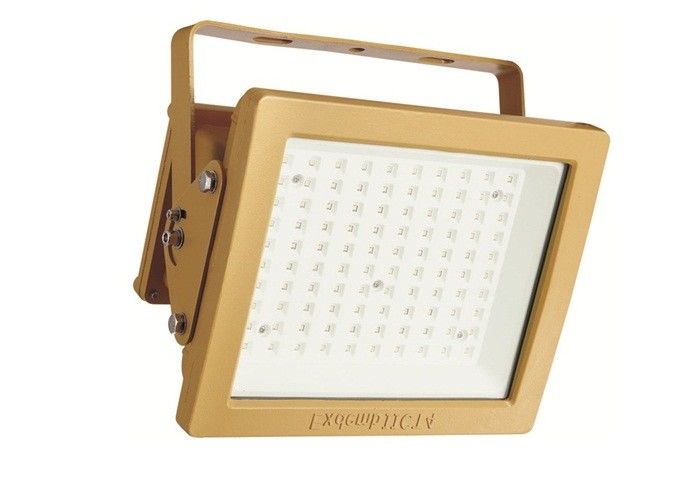

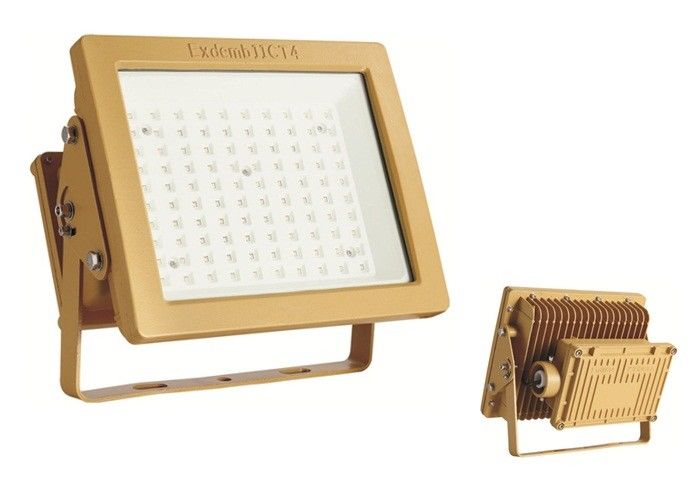

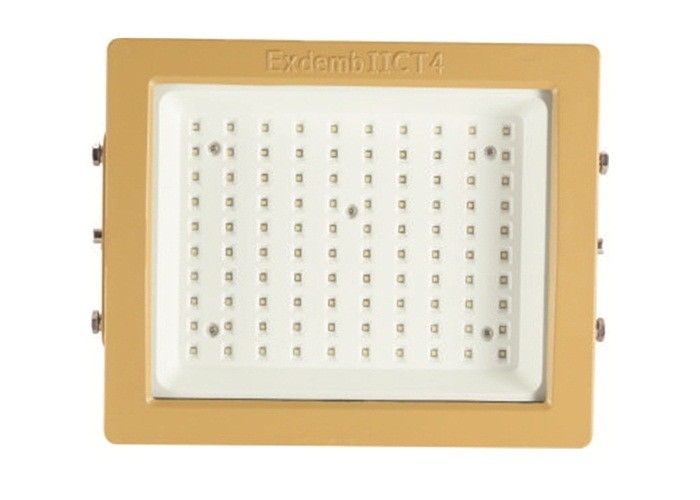

IECEx Explosion Proof LED Flood Light Wall Mounted LED Flood Light Fixtures

IECEx Explosion Proof LED Flood Light Wall Mounted LED Flood Light Fixtures

explosion proof flood light fixtures

led garden flood lights

Place of Origin:

China (Mainland)

Brand Name:

HKV

Certification:

ATEX,IECEx,TUV,

Model Number:

HKV-FBP-100w

Contact Us

Request A Quote
Product Details
Product Name:
Explosion-proof Led Flood Light Fixtures 80w
Power:
100W,or 50W,60W,80W,150W,200W
Material:
Aluminum Alloy
Color:
Yellow
LM:
8800lm,11000 Lm
LM/W:
110 Lm/W
LED Chips:
3030
PF:
0.95
Explosion Grape:
Ex D E Mb IIC T5 Gb, Ex Tb Mb IIIC T95℃ Db
Installation:
Ceiling,frame,hanging Tube, Wall-mounted
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiated
Packaging Details
1Pcs/carton,Neutral Packing
Delivery Time
15 days after we received payment
Payment Terms
L/C, , D/P, T/T
Product Description



IECEx Explosion-proof Flood Light Lighting Fixtures for Dangerous Areas 100W​ EX

Specifications:

Model NEW-FBF-100W
Voltage AC85-265V
Hz 50/60Hz
PF 0.95
Power 60W,or 50W,80W,100W,150W,200W
LM 8800lm,11000 lm
LM/W 110 lm/W
LED Chips 3030
LED working voltage DC30-42V
Color Temp. WW 2700- 3500K
NW 3500-5000K
CW 5000-6500K
Ra Ra>80
Working Temp. -30°C ~+45°C
IP IP65
Explosion Grape Ex d e mb IIC T5 Gb
Ex tb mb IIIC T95℃ Db
Body Dia-cast Al + Anti-corrosion Painting
Lens 10mm toughened Glass
Installation Ceiling,frame,hanging tube,
wall-mounted
Corrosion Grape WF2
LED life-span 30,000 hours
N.W: 3.4KG
Inner box 34*28*22cm
Carton box 34*28*22cm



Product Describtions:

Led Explosion Proof Light use quality led source,high luminous efficiency,less power consumptionsafe and reliable.It fin thickness up to 6mm,high density of fin echances the heat dispersion surface and speed the air flow,makeing sure the long lifespan of led.The thick brosilicate glass mask with 5mm thickness HBG.Anti shock,heat resistance,stability,enchance explosion proof performance. Made of strengthened fie casting aluminum alloy.

· High pressure die casting aluminum housing
· Groove cooling design, air flow cooling technology
· Fine hermetically-sealed construction,waterproof and dustproof property
· High Explosion proof grade

Gas explosive environment: Group IIA IIB IIC
. Temperature class: T5 to T6

. Explosion-proof Flood Light Lighting Fixtures Waterproof Marine Fluorescent 80W



FAQ:

Q1. Why choose us?

A1: We are a professional LED Manufacturer and good at manufacturing LED flood light, LED high bay light, LED street lightand, LED mart light, LED explosion proof light and so on.As for LED,we have some advantages as below:Factory direct selling,Original designs,High quality control, fast delivery and competitive price.

Q2. How to order?

A2: Submit an inquiry straightly , We will reply you at the earliest time we can.

Q3. How long does the package take to delivery to my address?

A3: For sample order, package arrives you in 10 Working days (3 days for production, another 1-5 working days for delivery); For bulk order, 30 days for North American Area(Shipping by Air).

Q4. Can you offer OEM service?

A4: Yes,we can offer OEM service, we have our own designer and skilled technicials at your service.

Q5. Do you offer samples?

A5: Yes,samples are available. Please kindly let us know your requirement.

Q6. Is it OK to print my logo on led light product?

A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A7: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including

re-call according to real situation.
