Place of Origin:
China
Brand Name:
HKV
Certification:
CE,ROHS, ATEX
Model Number:
HKV-T50
Contact Us

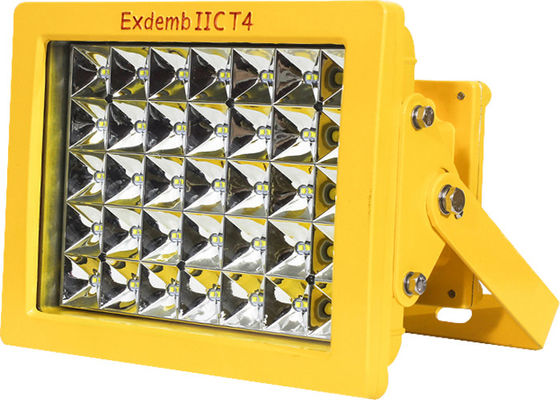

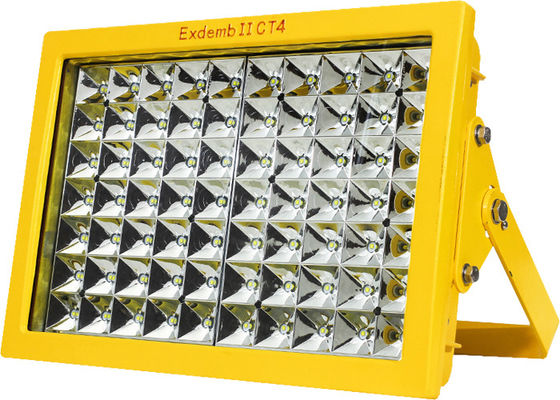

Explosion Proof Led Light Fixtures Gas Station Light 50W Led Explosion Proof Light
Part Number:
HKV-T50
Production Lead Time*:
7-15 Days
Shipping:
FOB CEHNGDU
Quantity:
1pc
Parameter:
| Model | HKV-T50/60/70W | HKV-T100/120/150W | HKV-T180/200/250W |
|---|---|---|---|
| Power | 50W/60W/70W | 100/120/150W | 180/200/250W |
| Ex-mark | Ex demb II C T4 Gb | Ex demb II C T4 Gb | Ex demb II C T4 Gb |
| IP Rating | IP66 | IP66 | IP66 |
| Protection grade | WF2 | WF2 | WF2 |
| Input voltage | 85~265V | 85~265V | 85~265V |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Light Efficiency | >130lm/W | >130lm/W | >130lm/W |
| CCT | 2700~6500K | 2700~6500K | 2700~6500K |
| Lifespan | 50000hrs | 50000hrs | 50000hrs |
| Power Factor | PF>0.95 | PF>0.95 | PF>0.95 |
| Ambient temp | -55℃~+60℃ | -55℃~+60℃ | -55℃~+60℃ |
| Dimensions | 330x255x166mm | 446x306x166mm | 520x360x200mm |
| Net Weight | 9kg | 13kg | 17.8kg |
Applications:
· Apply to places with high requirement protection and humid
· Apply to explosive environment such as zone 1, zone 2.
· Apply to IIA, IIB, IIC explosive environment.
· Apply to T1-T6 temperature series.
· Widely used to oil exploitation, oil refining, chemical engineering,military project, offshore oil platforms and other hazardous environment.
· Apply to energy saving retrofit and difficult places to repair and replace.
Features:
· Suitable for 60 and 120 angle pure aluminium reflector to meet professional lighting requirements;
· Die-cast aluminium forming shell, treated by anti-corrosion ,electrostatic spraying;
· Heat pipe riveting technology, combined with HDT technology and pressing technology, rapid heat conduction;
· Innovation of light and thin louver radiator, air convection design,optimization of air duct, all-round three-dimensional heat dissipation;
Description:
Thick Borosilicate Glass Mask
· 5mm thichness HBG
· Anti shock
· Heat Resistance
· Stability and luminous efficiency
· Enhance explosion proof performance
Heat Dispersion
· Fin thickness up to 6mm,high density of fin enhances the heat dispersion surface and speed the air flow, making sure the long lifespan up to 50000 hours.
Quality LED Source
· High liminous efficiency
· Less power consumption
· Safe and reliabe
· Long life span more than 50000 hours
· Full sealed ,water and dust proof
· Free maintenance
Tough Shell
· Made of strengthenen die casting aliminum alloy.the surface is disposed by high voltage electrostatic spary with unique design and excellent heat dispersion.
More Details
· Cable outlet G3/4
· Geat resistance silicon
· Finest screw
· Quality sealing plastic stripe
Company Information:
Chengdu HKV Electronic Technology Co.,Ltd., established in 2015.We located in Chengdu City of Sichuan Province. We are specializing in R&D, manufacture and offer quality outdoor & industrial LED lighting and committed to provide professional solutions and technical service to customers. Our main R&D engineers have more than 10 years of experience in the Led lighting.
HKV main products are LED explosion proof light, emergency light, street light , high bay light, Led food light, .etc. HKV is one of the best manufacturers as well as a professional energy saving solutions provider of LED industrial lighting in China. We also support OEM & ODM products.
HKV takes quality as superiority and offer excellent pre-sale support and after-sale services. HKV not only provides customers with the high quality products with competitive price, but also offers the corresponding solutions.
FAQ:
A1:We are a professional LED Manufacturer and good at manufacturing LED flood light, LED high bay light, LED street lightand, LED mart light, LED explosion proof light and so on.As for LED,we have some advantages as below:Factory direct selling,Original designs,High quality control, fast delivery and competitive price.
Q3. How long does the package take to delivery to my address?
A3: For sample order, package arrives you in 10 Working days (3 days for production, another 1-5 working days for delivery); For bulk order, 30 days for North American Area(Shipping by Air).
Q4. Can you offer OEM service?
A4:Yes,we can offer OEM service, we have our own designer and skilled technicials at your service.
Q5: Do you offer guarantee for the products?
A5: Yes, we offer 2-5 years warranty to our products.
Q6: How to deal with the faulty?
A6: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including
re-call according to real situation.
