Place of Origin:
China
Brand Name:
HKV
Certification:
CUL/ ATEX/ CE/ROHS/SAA
Model Number:
HKV-CES120/150/200
Contact Us

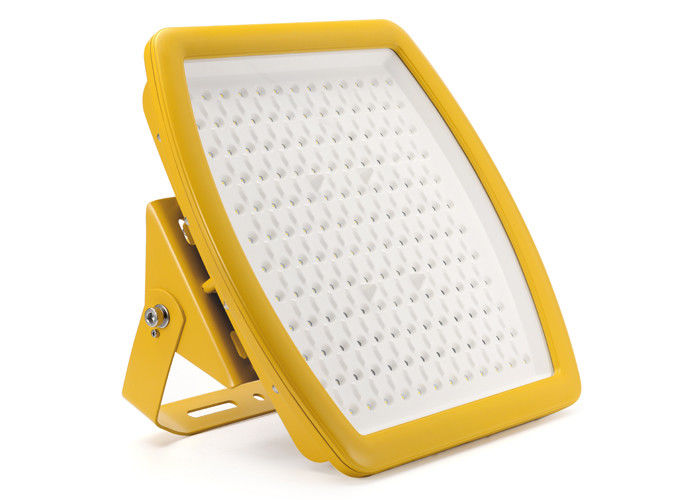

High Lumen IP68 Atex Certification explosion proof light 120w 150w 200W LED Light
Part Number:
HKV-CES
Production Lead Time*:
7-15 Days
Shipping:
FOB CEHNGDU
Quantity:
1pc
Parameter:
| Power | 20/30/40W | 60/80/100W |
120/150/200W |
| IP Rating | IP68 | IP68 | IP68 |
| Operating temperature | -40℃ to 50℃ | -40℃ to 50℃ | -40℃ to 50℃ |
| Input voltage (V) | AC100-277V | AC100-277V | AC100-277V |
| Angle | 60°x30°(RF) / 120°x120° | 60°x30°(RF) / 120°x120° | 60°x30°(RF) / 120°x120° |
| Lumen | 2300/3450/4600lm | 6900/9200/11500lm | 13800/17250/21275lm |
| Light efficiency | 115Lm/W | 115Lm/W | 115Lm/W |
| CCT | 5500-6000K | 5500-6000K | 5500-6000K |
| Input voltage (V) | AC100-277 | AC100-277 | AC100-277 |
| PF | 98% | 98% | 98% |
| CRI | >73 | >73 | >73 |
| THD | <10% | <10% | <10% |
Applications:
· Apply to energy saving retrofit and difficult places to repair and replace.
· places with high requirement protection and humid
· Explosive environment such as zone 1, zone 2.
· IIA, IIB, IIC explosive environment.
· Used to oil exploitation, oil refining, chemical engineering,military project, offshore oil platforms and other hazardous environment.
· Apply to T1-T6 temperature series.
Widely used in dangerous environment such as gas station, oil refining, chemical industry,petroleum exploitation, military industry, offshore oil platforms, oil tankers and other places for general lighting and operation lighting.
Description:
Class I Division 2 Group A B C D
Group II Zone 1 & Zone 2, Zone21 & Zone22
Group II Zone 1 & Zone 2, Zone21 & Zone22
Group II Zone 1 & Zone 2, Zone21 & Zone22
A variety of international certifications.
IP68 protective level,5 years warranty.
The intergration of reflective optical design,install directly in the light body , make the light more focus and comfortable for eyes.

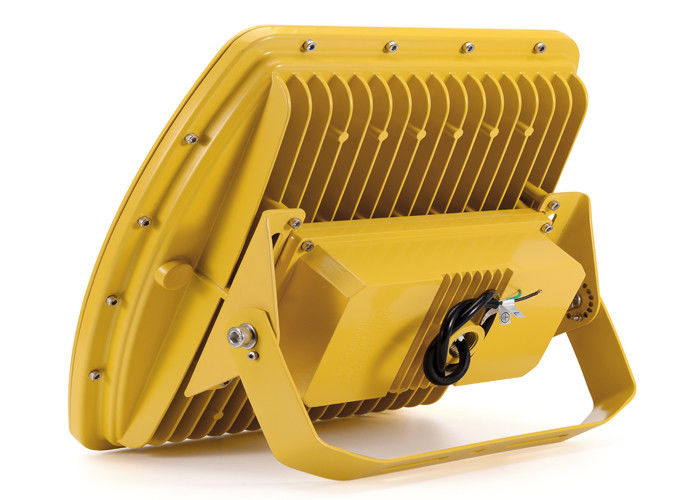

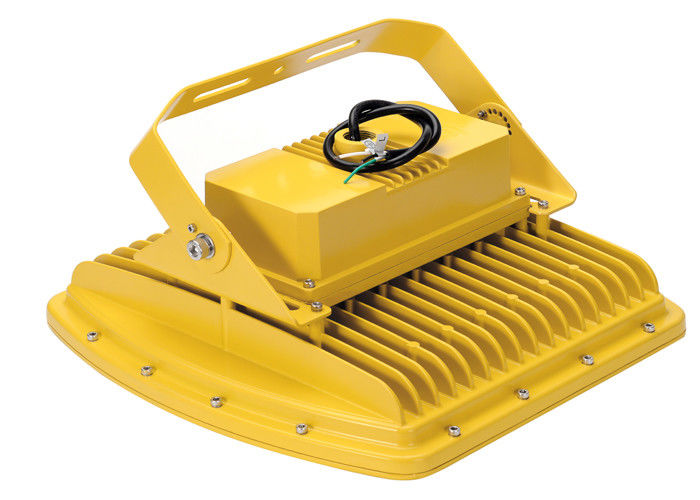

High pressure die casting alloy aluminum housing,create through high pressure in one piece , high explosion proof level and IP68 waterproof protection.
LED chip with 2.0mm Aluminum PCB board installed directly onto aluminum shell .as a result ,the whole lamp is integrated as a radiator for the led chips , Besides,the distance of leds are good enough for spreading heat ,to ensure long lifespan,and with special circuit design ,each led chip wont affect the others when fail to work , so the lamp will keep working enev if some led chips stopped.
More options for shipping your cargoes:
1. By express: DHL,UPS,FEDEX,TNT,USPS etc. delivery time for 3-7 days.
2. Air freight: when your cargoes are more than 100kg, air freight will be more economical than express.
3. Sea freight: shipping by SEA is available after customer tells us the destination port.
4. Agent designated by client: please tell us the contact details of your shipping agent / forwarder.
FAQ:
1. How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
2 . When will make delivery ?
A : Delivery Time
-Sample Order: 1-3 days after receipt of the full payment.
-Stock Order: 3-7days after receipt of the full payment
-OEM Order: 12-20days after receipt of the payment.
3. After-sales Service 3 year warranty for this kinds of products;
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
4. Payment T/T, Western Union, L/C.
5. Transportation Transported by DHL, UPS, EMS, Fedex, Air freight. sea freight.
6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on mass production after test sample well
7. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
