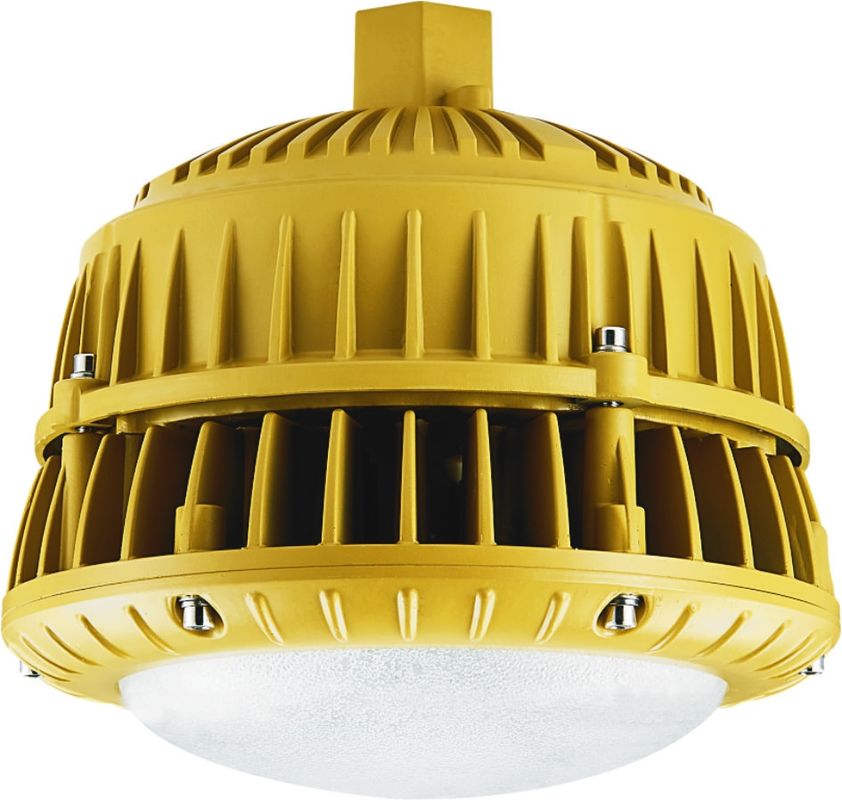

Wide Voltage 85-265V Explosion Proof High Bay Lighting Industrial 5400lm Led EX Proof Lighting

NEW-FBG-60W explosive led light fixture high bright energy saving fluorescence LED light

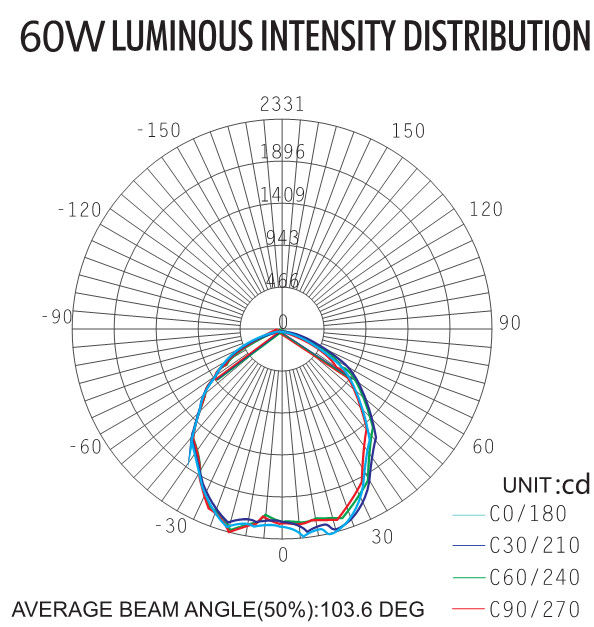

1. specification

2. Products Description

1). Designed and manufactured in accordance with the requirements of explosion-proof structure. Can work safely in various flammable and explosive places.

2). International top brand LED light source, Low energy consumption, high light efficiency, power consumption is only 20% of Incandescent light with same luminous flux. Energy conservation and environmental protection.

3). Casing adopts aluminum die-casting molding and the most advanced surface electrostatic spraying technology. The exterior fasteners are made of 304 stainless steel.Sealing elements adopt silicone material,corrosion proof,water proof and dust proof.Float toughened glass transparent cover, special diffuse reflection anti-glare design, light transmittance over 96%.

4). The light source cavity, power cavity and connection cavity are designed with separation structure. Can effectively improve the heat dissipation performance and prolong lifetime of light source.

5). Light source components, light distribution components, power modules are all designed and assembled by standard modules, Easier to replace and lower maintenance cost.

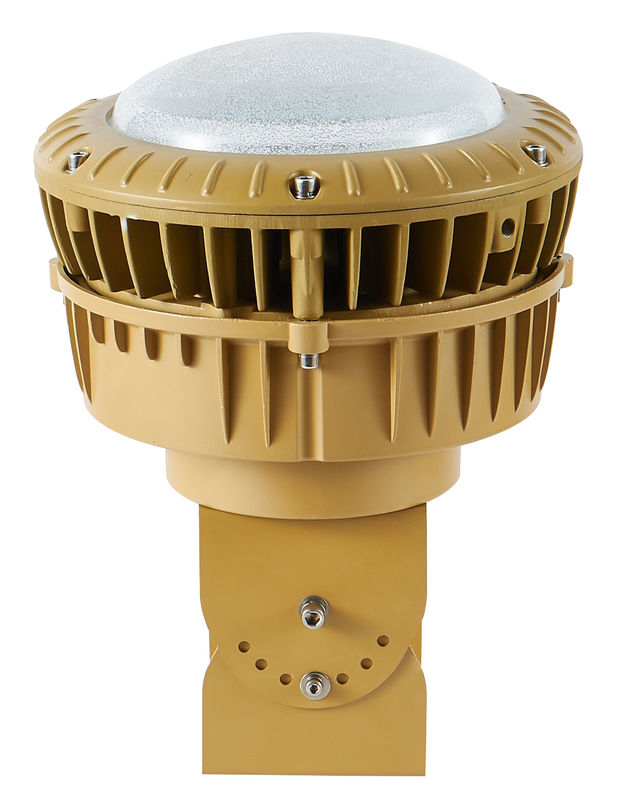

6). Adopt ceiling type, wall type, guardrail type and other installation methods; Small volume, light weight, indirect cable introduction, easy installation and wiring.

3. Install performance

Different Install according to the actural use.

4. Packing Information

N.W.: 9kg
Inner carton size: 25*25*25cm
Outer carton size: 52*26*27 (2pcs/ctn)
G.W.: 20kg/ctn

5. Application

Ideal to be used in the olifiled, chemical industry, steel industry, power port, petroleum etc. Harsh environment, moist area Zone1 Zone 2

Gas explosive environment: Group IIA, IIB, IIC. Temperature class: T5 to T6

6. Our Service

•  Professional person communicate with you before the order
•  OEM&ODM, also provide customized service
•  Distributoership are offered for your unique design and some our current model
•  Protection of your sales area, ideas of design and all your private information
•  Provide strict quality check for each part,each process before export
•  Provide complete post-sale service,including installation,technical guide

7. FAQ

Q1. How to proceed an order for explosion proof light?
