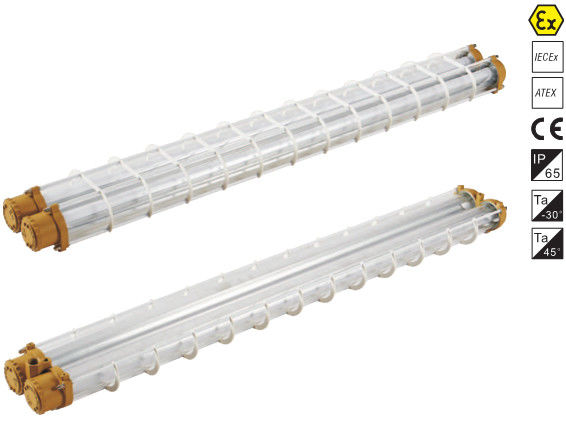

1.3M ATEX Two Toughened Glass Tube Ceiling Explosion Proof LED Light 20w 40w

1.3M ATEX Two Toughened Glass Tube Ceiling Explosion Proof LED Light 20w 40w

explosion proof lighting

explosion proof light fittings

Place of Origin:

China

Brand Name:

HKV

Certification:

CE, Ex, ATEX, IECEx, WF1

Model Number:

NEW-FBY0062-18W

Contact Us

Request A Quote
Product Details
Model Name:
NEW-FBY0062-18W
Power Factor:
0.95
Power:
2*18W
Lumen:
90lm/W
CCT:
2700-6500k
CRI:
80
Operating Temperature:
-30℃ To +45℃
IP:
IP54
Payment & Shipping Terms
Minimum Order Quantity
100
Price
Negotiated
Packaging Details
1pc/carton
Delivery Time
30~50days according to order quantity
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
10000 per a month
Product Description

NEW-FBY0062-18W Linear aluminum tube LED light Ex proof light with fluorescent



1. specification

Model Name NEW-FBY0062-18W
Input voltage AC85-265V
Power frequency 50/60Hz
Power factor 0.95
Watte 2*18W
Lumen 3240lm
Luminous Efficiency 90lm/w
CCT 2700-3500K 3500-5000K 5000-6500K
CRI Ra>=80
Operating Temperature -30℃ to 45℃
IP IP54
warranty 2years
Lifespan >50000h
Certification EX, IECEx, ATEX, CE





2. Products Description

A) Aluminium alloy Enclosure, high voltage electrostatic powder coated after shot blasted. High strength toughened glass cover. BPY easy maintenance Explosion proof LED lamp Exposed fasteners are of stainless steel with function of high corrosion-proof. With grids to adjust lighting effect and reduce the glare.


B) Modular plug structure design, only need disconnect end cover draw out core to change tubes.



C) For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.



D) Inside the emergency unit designed with over charging and over discharging protectioncircuit.



E) Screw connection type, for easy installation and maintenance. Power factor can be over 0.95. Steel conduit or cable wiring.





3. Install performance

Different Install according to the actural use.

1.3M ATEX Two Toughened Glass Tube Ceiling Explosion Proof LED Light 20w 40w 0





4. Application

A) Suitable for explosive gas environment Zone1 and Zone2.



B) Suitable for IIA,IIB,IIC explosive gas environment.



C) Suitable for Hazardous dust area: Zone20, Zone21, Zone22.



D) Can be used in the environment of temperature group for T1~T6.



E) Lighting source: T8 tube.



F) Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.





5. Technical Parameters

A) Meet a criterion:G3B3836.1, GB3836.2, GB12476.1, IEC60079-0,IEC60079-1,IEC61241-1, EN60079-0, EN60079-1, EN61241-1
Ex---proof Mark: Exd II BT6 Gb, Exd II CT6 Gb, DIP A21 TA, T6.



B) Protection grade:IP54, IP65



C) Corrosion-proof grade:WF1



D) Inlet Thread: G1/2" BPY easy maintenance Explosion proof LED lamp lighting fixture Cable outer dia:6mm~10mm



E) Battery charging time:≤24h
