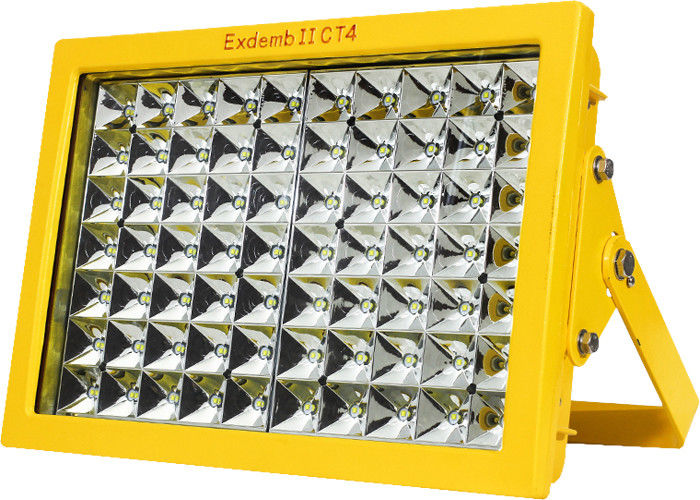

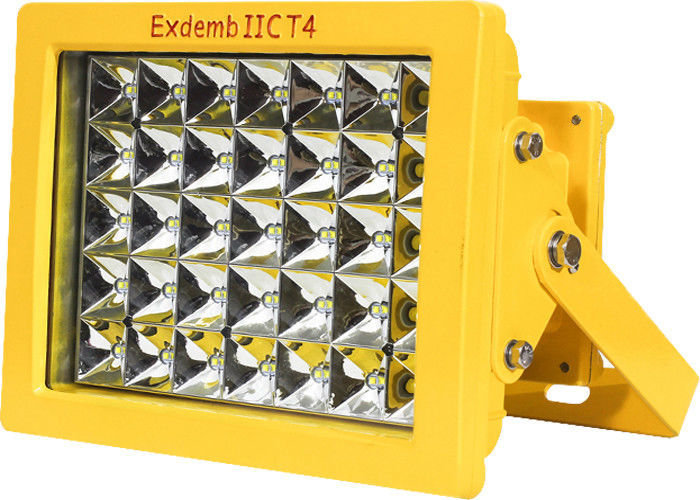

WF2 Explosion Proof LED Light Fixtures With Aluminium Forming Shell

WF2 Explosion Proof LED Light Fixtures With Aluminium Forming Shell

explosion proof light fittings

industrial explosion proof lighting

Place of Origin:

China

Brand Name:

HKV

Certification:

CE,ROHS, ATEX

Model Number:

HKV-T100

Contact Us

Request A Quote
Product Details
Product Power:
100W
Input Voltage:
85-265V
Frequency Range:
50~60Hz
Power Factor:
0.95
Ex-mark:
Ex Demb II C T6 Gb
Protection Level:
IP65/IP66
Anticorrosion Grade:
WF2
Color Rendering Index:
Ra>85
Luminous Efficiency:
≥100lm/W
Work Temperature:
-55℃~+60℃
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiated
Packaging Details
1pcs / carton
Delivery Time
5-7days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
5000/week
Product Description

Exploosion Proof Led Light Fixtures 100W IP66 Waterproof Industrial Flood light

Part Number:
HKV-T
Production Lead Time*:
7-15 Days
Shipping:
FOB CEHNGDU
Quantity:
1pc

Parameter:

Exploosion Proof Led Light Fixtures 100W IP66 Waterproof Industrial Flood light
Model HKV-T50/60/70W HKV-T100/120/150W HKV-T180/200/250W
Power 50W/60W/70W 100/120/150W 180/200/250W
Ex-mark Ex demb II C T4 Gb Ex demb II C T4 Gb Ex demb II C T4 Gb
IP Rating IP66 IP66 IP66
Protection grade WF2 WF2 WF2
Input voltage 85~265V 85~265V 85~265V
Frequency 50/60Hz 50/60Hz 50/60Hz
Light Efficiency >130lm/W >130lm/W >130lm/W
CCT 2700~6500K 2700~6500K 2700~6500K
Lifespan 50000hrs 50000hrs 50000hrs
Power Factor PF>0.95 PF>0.95 PF>0.95
Ambient temp -55℃~+60℃ -55℃~+60℃ -55℃~+60℃
Dimensions 330x255x166mm 446x306x166mm 520x360x200mm
Net Weight 9kg 13kg 17.8kg




Applications:

  It is widely used in dangerous environment such as gas station, petroleum exploitation, oil refining, chemical industry, military industry, offshore  oil platforms, oil tankers and other places for general lighting and operation lighting.

 Widely used to oil exploitation, oil refining, chemical engineering,military project, offshore oil platforms and other hazardous environment.
 Apply to energy saving retrofit and difficult places to repair and replace.
 Apply to places with high requirement protection and humid
 Apply to explosive environment such as zone 1, zone 2.
 Apply to IIA, IIB, IIC explosive environment.
 Apply to T1-T6 temperature series.


Features:
   Die-cast aluminium forming shell, treated by anti-corrosion ,electrostatic spraying;
   Heat pipe riveting technology, combined with HDT technology and pressing technology, rapid heat conduction;
   Innovation of light and thin louver radiator, air convection design,optimization of air duct, all-round three-dimensional heat dissipation;
   Suitable for 60 and 120 angle pure aluminium reflector to meet professional lighting requirements;


Description:

Quality LED Source
  High liminous efficiency
  Less power consumption
  Safe and reliabe
  Long life span more than 50000 hours
  Full sealed ,water and dust proof
  Free maintenance


Heat Dispersion
  Fin thickness up to 6mm,high density of fin enhances the heat dispersion surface and speed the air flow, making sure the long lifespan up to 50000 hours.

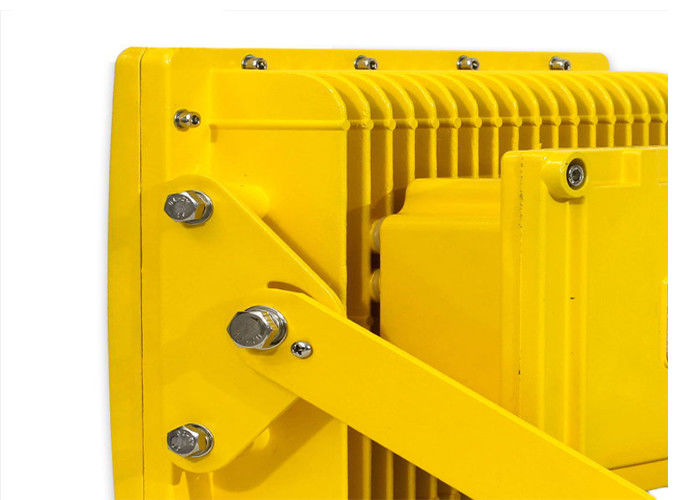

Tough Shell
  Made of strengthenen die casting aliminum alloy.the surface is disposed by high voltage electrostatic spary with unique design and excellent heat dispersion.


Thick Borosilicate Glass Mask
  5mm thichness HBG
  Anti shock
  Geat Resistance

  Stability and luminous efficiency
  Enhance explosion proof performance

More Details
  Cable outlet G3/4
  Geat resistance silicon
  Finest screw
  Quality sealing plastic stripe

Company Information:
Chengdu HKV Electronic Technology Co.,Ltd., established in 2015.We located in Chengdu City of Sichuan Province. We are specializing in R&D, manufacture and offer quality outdoor & industrial LED lighting and committed to provide professional solutions and technical service to customers. Our main R&D engineers have more than 10 years of experience in the Led lighting.
HKV main products are LED explosion proof light, emergency light, street light , high bay light, Led food light, .etc. HKV is one of the best manufacturers as well as a professional energy saving solutions provider of LED industrial lighting in China. We also support OEM & ODM products.
HKV takes quality as superiority and offer excellent pre-sale support and after-sale services. HKV not only provides customers with the high quality products with competitive price, but also offers the corresponding solutions.


FAQ:

Q1. Why choose us?

A1We are a professional LED Manufacturer and good at manufacturing LED flood light, LED high bay light, LED street lightand, LED mart light, LED explosion proof light and so on.As for LED,we have some advantages as below:Factory direct selling,Original designs,High quality control, fast delivery and competitive price.

Q2. Do you offer samples?

A2: Yes,samples are available. Please kindly let us know your requirement.


Q3. How long does the package take to delivery to my address?
A3:For sample order, package arrives you in 10 Working days (3 days for production, another 1-5 working days for delivery); For bulk order, 30 days for North American Area(Shipping by Air).

Q4. Can you offer OEM service?
A4:Yes,we can offer OEM service, we have our own designer and skilled technicials at your service.

Q5: Do you offer guarantee for the products?
A5: Yes, we offer 2-5 years warranty to our products.

Q6: How to deal with the faulty?
A6: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including
re-call according to real situation.
