| Place of Origin: | China |
| Brand Name: | HKV |
| Certification: | CCC, CE, RoHS, SAA, UL |
| Model Number: | HKV-CES-SC30 |
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | brown carton |
| Delivery Time: | 30days to 50days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 10000pcs per a month |
| Input Voltage(V): | AC120-277V | Light Source: | Brand Led Chips |
|---|---|---|---|
| Power: | 30W | Lumen: | 100lm/W |
| CRI: | >70 | Work Temperature: | -40℃ To 50℃ |
| IP: | IP66 | Lifespan: | 50000h |
| High Light: | explosion proof lighting,explosion proof light fittings |
||

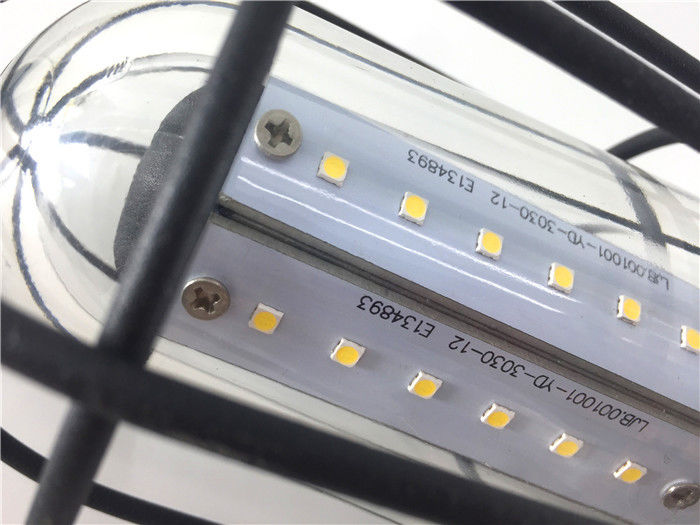

HKV-CES-SC30 movable hand-held and portable explosion proof LED light 30W IP66 waterproof
1. Specification
| power | 30W |
| Input voltage | AC120-277V(50/60Hz) |
| PF | 0.95 |
| Surge Protection | 1.5KV |
| lumen | 100lm/W |
| Beam Angle | 180 / 360 degree |
| CRI | >70Ra |
| CCT | 5000k |
| working temperature | -40℃ to 50℃ |
| Ex code |
CID1: T6 / CID2, CIID2: T4A |
| IP | IP66 |
| Lamp size | 554*99.5mm |
| warranty | 5 years |
| lifespan | 50000h |
B) Best-in-class system efficacy - Up to 3000lm,Instant on/off operation
C) Universal Voltage:AC120-277V(50/60Hz)/DC12-24V(Emergency Mode Run time:3hours available)
D) Wide ambient temp. range from - 40°C to + 50 °C ( -40°F ~ + 122°F)Safe and reliable heat transfer - Offering a T-rating of T3C (CID2) / T4A (CIID1)
E) Rugged fabricated steel and cast aluminum construction.
F) Shock-and vibration-resistant - Durable LED with solderless board connection
G) Rugged fabricated steel and cast aluminum construction and Copper-free aluminum body ,corrosion resistant, tempered glass lens prevent shattering
H) All exposed fasteners with high quality stainless steel
I) Thermal shock and impact resistant tempered glass lens

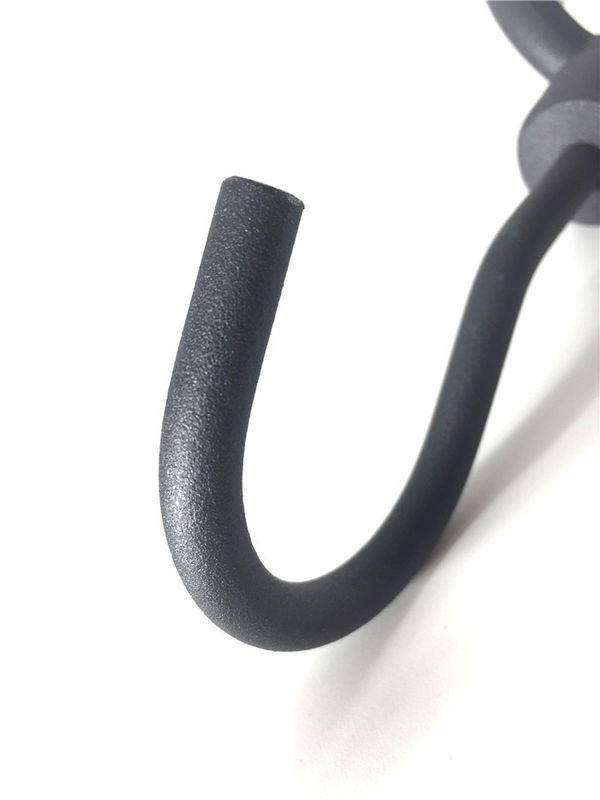

J) Slim and compact design, Swivel hook for hanging and hands free operation

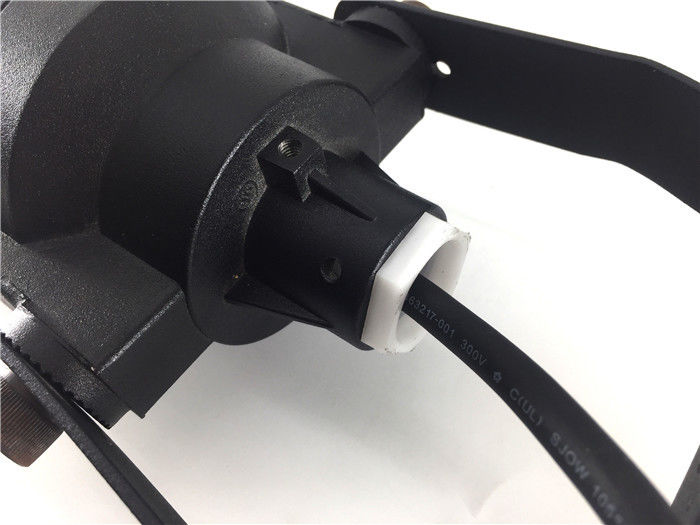

K) Explosion proof cord
3. Application
A) Oil refinery tank/Loading Docks / Platforms / Shipyards
B) Chemical Processing Facility
C) Petrochemical Processing Facility
