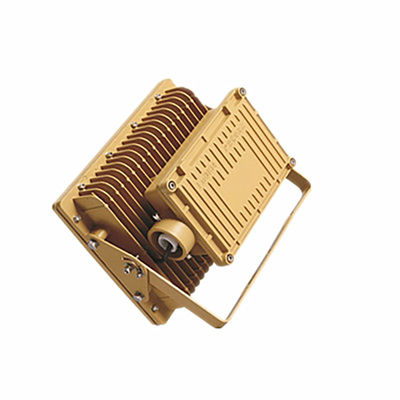

80W Explosion Proof Highbay Lamp Led Anti Explosion Light with EU ATEX IECEx

80W Explosion Proof Highbay Lamp Led Anti Explosion Light with EU ATEX IECEx

explosion proof light fittings

industrial explosion proof lighting

Place of Origin:

China (Mainland)

Brand Name:

HKV

Certification:

ATEX,IECEx,TUV,

Model Number:

HKV-FBG-80W

Contact Us

Request A Quote
Product Details
Product Name:
80W Led Highbay Light Anti Explosion Light
Power:
30W,50W,60W,80W,100W,120W,180W,200W
Material:
Aluminum Alloy
Color:
Yellow,or OEM
LM:
8800lm
LM/W:
110 LM/W
LED Chips:
Plips 3030 Chip
PF:
0.95
Input Voltage(v):
AC90-265V
Working Lifetime(hour):
50000hours
Installation:
Ceiling,frame,hanging Tube, Wall-mounted
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiated
Packaging Details
1Pcs/carton,Neutral Packing
Delivery Time
15 days after we received payment
Payment Terms
L/C, , D/P, T/T
Product Description

80W Explosion Proof Highbay Lamp Led Anti Explosion Light with EU ATEX IECEx



Specifications:

Item Name 80W Explosion Proof Highbay Lamp Led Anti Explosion Light
Voltage AC90-265V
PF 0.95
Power 30W,50W,60W,80W,100W,120W,180W,200W
LM 8800LM
LM/W 110 lm/w
LED Chips Plips 3030 chip
LED working voltage DC30-42V
Ra Ra>85
Hz 50/60Hz

Color Temperature

2700- 3500K,3500-5000K,5000-6500K
Working Temperature -30°C ~+45°C
IP Rate IP65
Explosion Grade
II 2G Ex db eb mb IIC T4~T6 Gb IP66
II 2D Ex tb, IIIC T95℃ Db
Zone1, Zone2
Zone 21, Zone 22
Body Material Dia-cast Al + Anti-corrosion Painting
Lens 10mm toughened Glass
Corrosion Grape WF2
LED life-span 50,000 hours
Inner box 19*19*19cm
Outter carton box 40*40*21cm
Weight

2.9kg/pcs,13kg/ctn

Installation Wall-mounted,ceiling,frame,hanging tube





Place to use :

* Suitable for IIA, IIB, IIC containing explosive gas or steam environment.



* The minimum ignition temperature of dust layer with a certain thickness is higher than the temperature range of T1~T6 in Zone 1 and Zone 2 in indoor or outdoor dangerous place or flammable dust environment.



* The 21th and 22nd districts are required to provide transillumination or emergency lighting.

Features:

* The lamps use tempered glass translucent cover, high light transmittance and good impact resistance.



* The lamps have the advantages of good corrosion resistance, high luminous efficiency, wide illumination range and durability.



* The joints are provided with rubber seals to improve the protection of the lamps and are suitable for use in places exposed to moisture or outdoor exposure.



* The lamps are seated, wall-mounted or ceiling-mounted and can be pitched with a seperately 45° up and down projection angle adjustment.



* Lamps use rubber-sheathed flexible cables or explosion-proof flexible tubes.



* The lamp uses LED light source. The light source has the advantages of energy saving, long service life, high luminous efficiency, and good shock resistance. It is maintenance-free for long-term use.



* The lamp can be equipped with an explosion-proof emergency power supply device. After the normal lighting of the power supply network fails, the luminaire can automatically switch to the emergency lighting state in an instant.



* The lamp housing is die-casted from aluminum alloy and the outer surface of the lamp is coated with polyester powder.

80W Explosion Proof Highbay Lamp Led Anti Explosion Light with EU ATEX IECEx 0





About US:

Chengdu HKV Electronic Technology Co.,Ltd., established in 2016. We are located in Chengdu City ofSichuan Province. We are professional on R&D, manufacture and offer quality outdoor& industrial LED lighting. HKV committed to provide professional solutions and technical service tocustomers. Our main R&D engineers have more than 10 years experience in the Led lighting.

HKV strictly complies with ISO-9001 and the workshop is managed according to the 7S site management system.
HKV main products are LED explosion proof light, emergency light, street light , high bay light, Led food light, tunnel light, .etc. HKV is one of the best manufacturers as well as a professional energy saving solutions provider of LED industrial lighting in China. We are welcome OEM & ODM products.
HKV takes quality as superiority and offer excellent pre-sale support and after-sale services. HKV not only provides customers with the high quality products with competitive price, but also offers the corresponding solutions.

Mission: Not just LED manufacturer, but one professional LED solution provider.



Shipping & payment:

1. Shipping by FedEx,DHL,UPS,TNT,EMS,Sea,Air .etc.
2. We accept T/T, L/C, Western Union, Paypal, MoneyGram.


FAQ:

Q1. Why choose us?

A1: We are a professional LED Manufacturer and good at manufacturing LED flood light, LED high bay light, LED street lightand, LED mart light, LED explosion proof light and so on.As for LED,we have some advantages as below:Factory direct selling,Original designs,High quality control, fast delivery and competitive price.

Q2. How to order?

A2: Submit an inquiry straightly , We will reply you at the earliest time we can.

Q3. How long does the package take to delivery to my address?

A3: For sample order, package arrives you in 10 Working days (3 days for production, another 1-5 working days for delivery); For bulk order, 30 days for North American Area(Shipping by Air).

Q4. Can you offer OEM service?

A4: Yes,we can offer OEM service, we have our own designer and skilled technicials at your service.

Q5. Do you offer samples?

A5: Yes,samples are available. Please kindly let us know your requirement.

Q6. Is it OK to print my logo on led light product?

A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A7: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including

re-call according to real situation.

Place to use :

Suitable for IIA, IIB, IIC containing explosive gas or steam environment.

The minimum ignition temperature of dust layer with a certain thickness is higher than the temperature range of T1~T6 in Zone 1 and Zone 2 in indoor or outdoor dangerous place or flammable dust environment.

The 21th and 22nd districts are required to provide transillumination or emergency lighting.
