High Power Ra >85 Explosion Proof LED Light Fixture Die - Cast Aluminium Forming

High Power Ra >85 Explosion Proof LED Light Fixture Die - Cast Aluminium Forming

explosion proof lighting

explosion proof light fittings

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Power:
Input Voltage:
Frequency Range:
Power Factor:
Ex Demb II C T5 Gb
Protection Level:
Anticorrosion Grade:
Color Rendering Index:
Luminous Efficiency:
Work Temperature:
-30°C ~+45°C
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
1pcs / carton
Delivery Time
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
Product Description

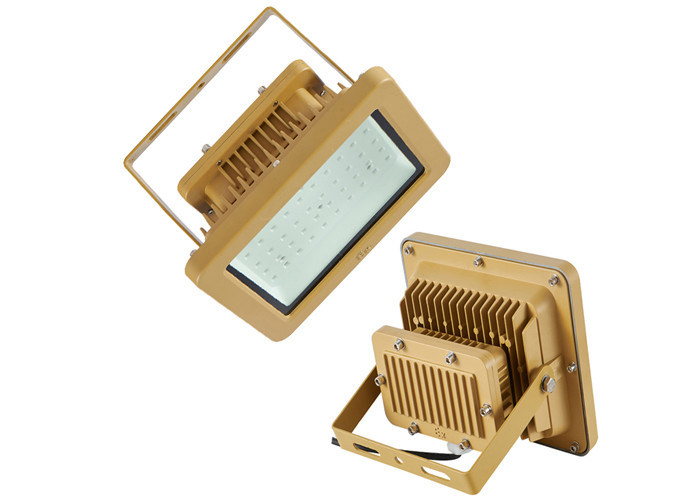

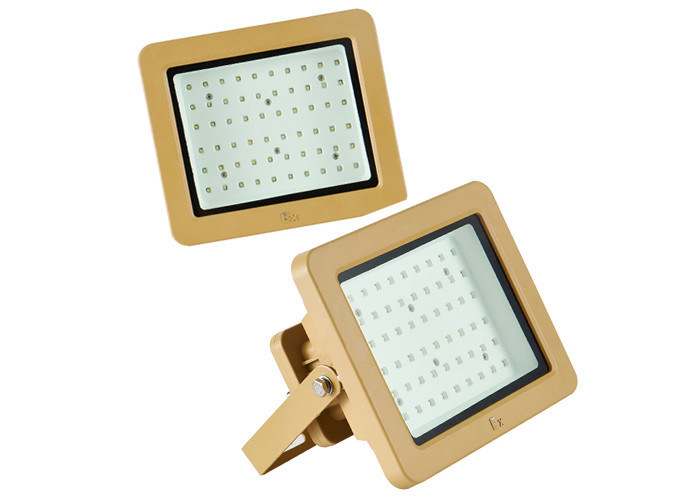

High Power Ra >85 Explosion Proof LED Light Fixture Die - Cast Aluminium Forming


Gas Station Light IP65 Explosion Proof LED Light Fixtures Die-Cast Aluminium Forming

Part Number:
Production Lead Time*:
7-15 Days

Model HKV-FBF011
Power 50W/60W
Ex-mark Ex demb II C T5 Gb
IP Rating IP65
Protection grade WF2
Input voltage 85~265V
Light Efficiency >130lm/W
CCT 2700~6500K
Lifespan 50000hrs
Power Factor PF>0.95
Ambient temp -55℃~+60℃
LM 5500lm,6600lm



ldeal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc. Harsh environment, moist area. Zone 1, Zone2

Gas explosive environment: Group IlA IlB IIC Temperature class: T5 to T6

High Power Ra >85 Explosion Proof LED Light Fixture Die - Cast Aluminium Forming 0

Body in die-cast copper-free aluminum alloy, treated byelectrostatic spraying, with good performance of hightemperature resistance and climate resistance. Temperedglass with good transmittancy.



lsolation Class l, Protection: OPP/OVPSCP/OTP, Wide input voltage 90-265Vac, built-in active PFC>0.96THD<15%,Surge Protection 10KV/6KV/4KV



Sources .

LED light source with different possibilities of temperature color (standard Natural White 4000K,executions on request also with     3000K,6000K).High coefficient of performance chromatic CRIZ 85.lifespan> 50,000hrs.



  Quality LED Source
  High liminous efficiency
  Less power consumption
  Safe and reliabe
  Long life span more than 50000 hours
  Full sealed ,water and dust proof
  Free maintenance
Heat Dispersion
Fin thickness up to 6mm,high density of fin enhances the heat dispersion surface and speed the air flow, making sure the long lifespan up to 50000 hours.
Tough Shell
Made of strengthenen die casting aliminum alloy.the surface is disposed by high voltage electrostatic spary with unique design and excellent heat dispersion.

Thick Borosilicate Glass Mask
  5mm thichness HBG
  Anti shock
  Geat Resistance

  Stability and luminous efficiency
  Enhance explosion proof performance
More Details
  Cable outlet G3/4
  Geat resistance silicon
  Finest screw
  Quality sealing plastic stripe
Company Information:
Chengdu HKV Electronic Technology Co.,Ltd., established in 2015.We located in Chengdu City of Sichuan Province. We are specializing in R&D, manufacture and offer quality outdoor & industrial LED lighting and committed to provide professional solutions and technical service to customers. Our main R&D engineers have more than 10 years of experience in the Led lighting.
HKV main products are LED explosion proof light, emergency light, street light , high bay light, Led food light, .etc. HKV is one of the best manufacturers as well as a professional energy saving solutions provider of LED industrial lighting in China. We also support OEM & ODM products.
HKV takes quality as superiority and offer excellent pre-sale support and after-sale services. HKV not only provides customers with the high quality products with competitive price, but also offers the corresponding solutions.

Q1. Why choose us?

A1We are a professional LED Manufacturer and good at manufacturing LED flood light, LED high bay light, LED street lightand, LED mart light, LED explosion proof light and so on.As for LED,we have some advantages as below:Factory direct selling,Original designs,High quality control, fast delivery and competitive price.

Q2. Do you offer samples?

A2: Yes,samples are available. Please kindly let us know your requirement.

Q3. How long does the package take to delivery to my address?
A3:For sample order, package arrives you in 10 Working days (3 days for production, another 1-5 working days for delivery); For bulk order, 30 days for North American Area(Shipping by Air).
Q4. Can you offer OEM service?
A4:Yes,we can offer OEM service, we have our own designer and skilled technicials at your service.
Q5: Do you offer guarantee for the products?
A5: Yes, we offer 2-5 years warranty to our products.
Q6: How to deal with the faulty?
A6: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including
re-call according to real situation.
