Place of Origin:
CHINA
Brand Name:
HKV
Model Number:
HKV-AP-FBA
Contact Us

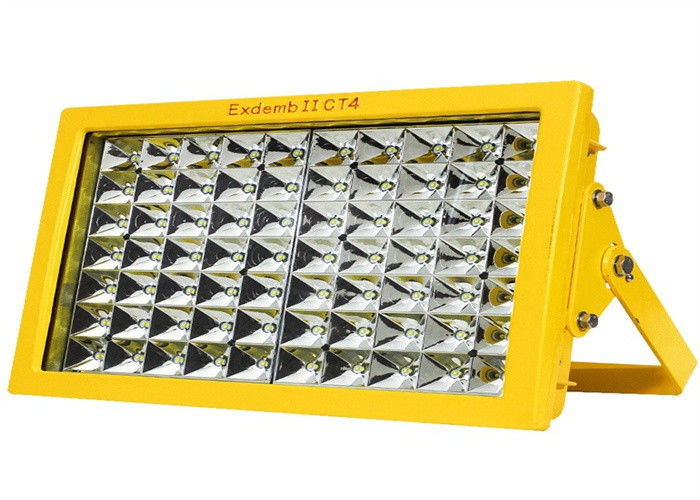

LED Gas Station Ex Demb II C T4 Gb 100w 200w Explosion Proof LED Flood Light
What are explosion proof lights?
Explosion proof lights are high resistance light which can work in harsh condition zones such as railways, coal mines, factories, manufacturing sites,and other similar areas. Most explosion proof lighting is being manufactured using LED technology by top LED manufacturers. This is happening because LED lights are more energy saving & eco-friendly as compared to other bulbs.
The deference between Anti proof lamp and general lamp: For explosion proof light, its features: waterproof,dust proof, prevent fire gas entering, there is anti explosion mark on the lamp housing cover.
Product Description
which applicable for hazardous areas such as petrochemical plants, refinery plants, oil & gas wellheads, power distribution room, control room, metering skid, pump house, field control room, roadway and etc. It uses top quality Cree LED light sources, owns advanced self-protection functions such as over-current, over-voltage and over-temperature. Quality guarantee of whole light is 5 years including power supply, service life of LED source is 100,000 hours, which is demonstrated in several domestic and abroad projects. Ex-mark: Exd II C T4 Gb
Features:
1. 3-5 Years Warranty
2. Sample Lead-time: 3-5 working days after got payment
3. Production Lead-time: 10-15 working day after got payment ( Depends on order quantity )
4. Payment terms: T/T 100%
5.Protection Rating: IP65
6.Explostion Protect Rating:Exd IIC T4
7.Anti-corrosion Grade:WF2
8.Insulation Grade: 1
Product Sepcification
Model | HKV-T50/60/70W | HKV-T100/120/150W | HKV-T180/200/250W |
Power | 50W/60W/70W | 100/120/150W | 180/200/250W |
Ex-mark | Ex demb II C T4 Gb | Ex demb II C T4 Gb | Ex demb II C T4 Gb |
IP Rating | IP66 | IP66 | IP66 |
Protection grade | WF2 | WF2 | WF2 |
Input voltage | 85~265V | 85~265V | 85~265V |
Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
Light Efficiency | >130lm/W | >130lm/W | >130lm/W |
CCT | 2700~6500K | 2700~6500K | 2700~6500K |
Lifespan | 50000hrs | 50000hrs | 50000hrs |
Power Factor | PF>0.95 | PF>0.95 | PF>0.95 |
Ambient temp | -55℃~+60℃ | -55℃~+60℃ | -55℃~+60℃ |
Dimensions | 330x255x166mm | 446x306x166mm | 520x360x200mm |
Net Weight | 9KG | 13KG | 17.8KG |
Performance characteristics
1)Optical system features
Preferably an inlet chip, with excellent luminous flux maintenance and high efficiency
The use of surface mount technology, a substantial increase in thermal conductivity
Carefully designed honeycomb light distribution structure, effectively improve the efficiency of lamps
2)Drive system features
Using cross-flow drive, with short circuit, overvoltage protection
EA type can be used as normal lighting, with emergency function, EB type as emergency lighting, usually in a closed state, A, B type in the main power can immediately start emergency lighting, can also be used for external switch control in the main power The power outage period starts at any time.
Has excellent electromagnetic compatibility, will not be other electrical appliances, input network interference, power supply itself has excellent resistance to electromagnetic interference,
With wide voltage compatibility characteristics, tolerance 20 voltage fluctuation
Driving power using sealant process to ensure that the original from corrosion
3)Features of the cooling system
Carefully designed three-chamber independent structure, to ensure the stability of the electronic components
Carefully designed with air diversion structure of the heat pipe heat tank to ensure that the LED light source life
Carefully designed independent power chamber structure, power supply work is not affected by the impact of LED heat to ensure the stability of the work of longevity
4)Structure of the whole lamp
IIC-class explosion-proof structure, and IP66 protection class, with excellent explosion protection performance
The use of high borosilicate tempered glass, can withstand high-energy impact
All exposed fasteners and accessories are made of stainless steel with high corrosion resistance
The use of integrated emergency chamber, no need to have another emergency box. Easy to install and repair
The use of top-open cover of the link, user-friendly wiring and maintenance, ceiling, tube hanging, suction wall, fence type, flange a variety of installation methods for customers to choose.
Product Detail
Installation Process
Applications:
The high power explosion proof led lamp provides operator with a powerful and energy efficient alternative to traditional hazardous location luminaires. It is ideal to be used as floodlight or spotlight at the oilfield, metallurgy,refinery, gas station, oil rig, petroleum, petrochemistry and
anywhere a highly durable and efficient light source is needed that can withstand exposure tohigh stress environments.
It is widely used in dangerous environment such as gas station, petroleum exploitation, oil refining, chemical industry, military industry, offshore oil platforms, oil tankers and other places for general lighting and operation lighting.
1. Widely used to oil exploitation, oil refining, chemical engineering,military project, offshore oil platforms and other hazardous environment.
2. Apply to energy saving retrofit and difficult places to repair and replace.
3. Apply to places with high requirement protection and humid
4. Apply to explosive environment such as zone 1, zone 2.
5. Apply to IIA, IIB, IIC explosive environment.
6. Apply to T1-T6 temperature series.
