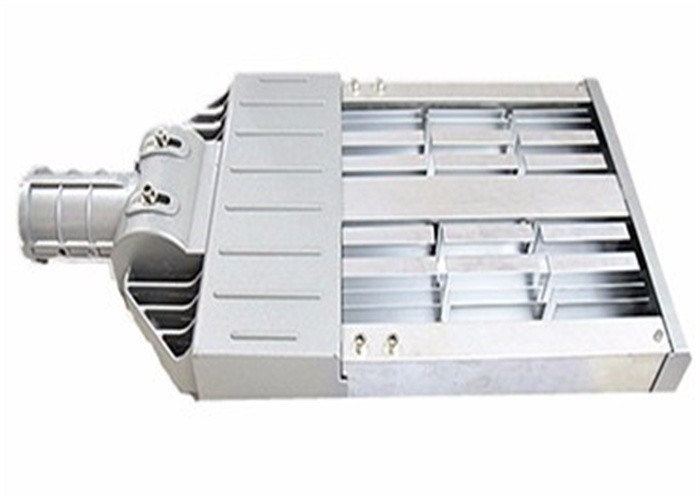

SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous

SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous

  • SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous
  • SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous
  • SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous
  • SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous
  • SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous
  • SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous
Product Details:
Place of Origin: CHINA(MAINLAND)
Brand Name: HKV
Certification: CE RoHS
Model Number: HKV-BR-SLF-50W
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: negotiable
Packaging Details: depends on customer requirment
Delivery Time: 10-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Item: AC85-265V Waterproof LED Street Lights CCT: 6000-6500K
Lamp Luminous Efficiency(lm/w): 120lm/w Input Voltage: AC85-265V
Driver: Brand Driver Led Chip: 3030 SMD Brand High Brightness Led Chip
CRI: >80 Material: Aluminum
Warranty: 3 Years/5 Years Application: Theme Park, Street,Garden,Square.etc.
High Light:

SMD3030 IP65 LED Street Lights

,

60 Watt IP65 LED Street Lights

,

SMD3030 luminous led street light

Factory Outlet SMD3030 Out Door 60 Watt High Luminous IP65 Waterproof LED Street Lights

Product Description
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 0
High luminous LED light source,
CRI ≥80 Ra
Professional LED power supply,
First Level in the industry

High quality radiator,


Enhance heat dissipation effect
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 1
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 2
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 3
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 2
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 5
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 2
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 7
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 2
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 9
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 10
Project Case
On the year of 2015, we winned 3 projects in East Africa, and the LED Street Lights be installed more than 3,000 pcs, and the reject ratio only 1.5% till now, most of them are working well. The two LED drivers(transformers) design, make the LED Street Lights have excellent quality. More Bright, Eco-Efficient, Excellent Quality, 2xLED Drivers Design, High-Performance.
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 11
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 12
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 13
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 14
SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous 15
Technical Specifications
Rated Power
60W
90W
120W
150W
LED Chip
Philps/Epistar
Philps/Epistar
Philps/Epistar
Philps/Epistar
input Voltage
AC85-265V 50/60Hz
AC85-265V 50/60Hz
AC85-265V 50/60Hz
AC85-265V 50/60Hz
LED Output
> 130 lm/w
> 130 lm/w
> 130 lm/w
> 130 lm/w
Luminous Flux
> 7800lm
> 11700lm
> 15600lm
> 19500lm
CRI
> 80 RA
> 80 RA
> 80 RA
> 80 RA
Color Temperature
3000 - 6500 K
3000 - 6500 K
3000 - 6500 K
3000 - 6500 K
Power Factor
> 0.9
> 0.9
> 0.9
> 0.9
Harmonic
NF C13-200
NF C13-200
NF C13-200
NF C13-200
Junction Temp.
120℃
120℃
120℃
120℃
Ambient Temperature
-35 ℃~ +55℃
-35 ℃~ +55℃
-35 ℃~ +55℃
-35 ℃~ +55℃
Materials
Aluminum + PC
Aluminum + PC
Aluminum + PC
Aluminum + PC
Recommend Height
5~6 m
7~9 m
7~10 m
7~10 m
IK Protection
IK 09
IK 09
IK 09
IK 09
Protection Safety
Class 1
Class 1
Class 1
Class 1
Fixation
Cross Vis inox = 8m
Cross Vis inox = 8m
Cross Vis inox = 8m
Cross Vis inox = 8m
Wind Resistance
150Km/h
150Km/h
150Km/h
150Km/h
Waterproof
IP65
IP65
IP65
IP65
Size
410x340x82mm
485x340x82mm
560x340x82mm
635x340x82mm
Neight Weight
5.95 KG
7.2 KG
8.6 KG
10.1 KG
Life Span
50,000 hours
50,000 hours
50,000 hours
50,000 hours
Warranty
3 Years
3 Years
3 Years
3 Years



FAQ
Do you offer the ODM or OEM product?
COSMOS has gained a lot of experience on ODEM and OEM.

Do you have warranty for products?
Yes, we have 2 and 3 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by COSMOS engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.

Do you design the products?
Yes, COSMOS designs and assembles all the products what we are selling.

What is your terms of delivery?
EXW, FOB, CIF, CIF, DDU etc. Anyone which you prefer.

What is the Terms of Payment?
L/C, T/T, D/P, D/A, Western Union and MoneyGram and so on.

How long is the delivery time?
Depends on the order quantities, normally the delivery time is 15-20 days.

What’s the standard package?
Standard package for export or special package if request.
