Place of Origin:
China
Brand Name:
HKV
Certification:
CE ROHS
Model Number:
HKV-BP-SLG-30W
Contact Us

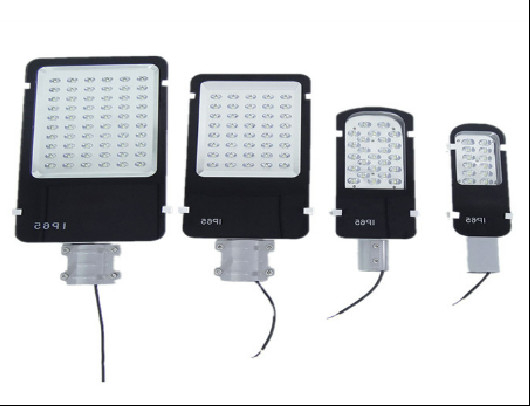

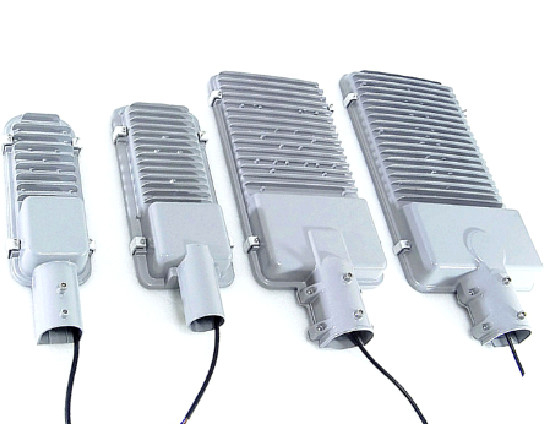

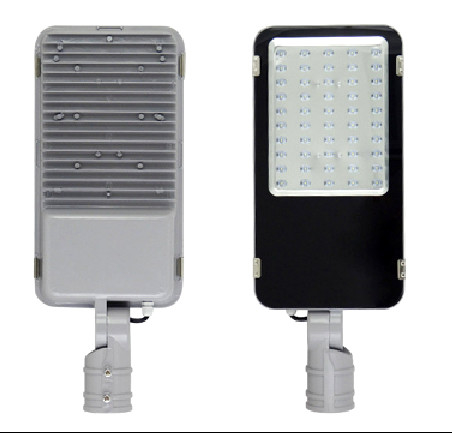

High quality LED solar street light 100w with high lumen for sale
Description
1. Good performance and thermal management.
2. The main structure is made of cast aluminum, and the surface is treated with anticorrosion.
3. Reasonable design and easy installation.
4. Performance parameters: Imported high chip packaging patent, 60% energy saving than traditional street lights;
5. Patented optical design: the uniformity of the road reaches 0.7 or higher, and there is even no lighting spot phenomenon;
6. High color: restore the original color of the object and beautify the urban environment;
7. Environmental health: LED has no mercury, no ultraviolet rays, and no radiation, which is more beneficial to environmental protection and health for human eyes;
8. Application areas: highways, main roads, secondary roads, bypass roads, etc.
| Power | 20W/30W |
| Rated voltage | 12/24V |
| Luminous | 130lm/W |
| Display index | RA＞80 |
| Color temperatur | Pure White 5000-7000K |
| Working temperature | -20℃~+70℃ |
| Solar Cell | Type Polycrystallin |
| Grade A cells Max Power Point Voltage (Vmax) | 30.5 V |
| Max Power Point Current (Imax) | 8.8A Open |
| Circuit Voltage (Voc) | 35.2V |
| Short Circuit Current (Isc) | 9.0A |
| Module Effciency | 18.80% |
| Max Fuse Rated Current | 15A |
| Material | Q235,Q345,iron,Steel,Aluminum |
| Color | Customized |
| Height | 3-35 m |
| Thickness | 1.8mm-14mm |
| Surface treatment | Hot-Dip Galvanized and electrostatic |
| Spraying Shape & Arm | Conical,octagonal,Customized Base plate |
| Mounted | Anchor bolts,nuts, screws Powder |
| Coating | Electrostatic spraying |
| item | value |
| Color Temperature(CCT) | Pure white 5000-7000K |
| Lamp Luminous Efficiency(lm/w) | 130 |
| Color Rendering Index(Ra) | 80 |
| Lighting solutions service | Lighting and circuitry design |
| Lifespan (hours) | ≥50000h |
| Light Source | LED |
| CRI (Ra>) | 80 |
| Working Temperature(℃) | -20℃~+70℃ |
| IP Rating | IP65 |
| Certification | CCC, ce |
| Warranty(Year) | 3-Year |
| Place of Origin | China |
| Jiangsu | |
| Brand Name | HKV |
| Beam Angle(°) | Horizontal axis: 100°, vertical axis 45° |
| Application | ROAD |
| Color | Light Grey, White, Dark Grey |
| Power Supply | Solar/ELECTRICITY |
Q1.MOQ and delivery time ?
A: NO MOQ required, sample testing welcome.. Mixed samples are acceptable.
Sample needs 7-10 days, mass production time needs 2-3 weeks for order quantity more than
