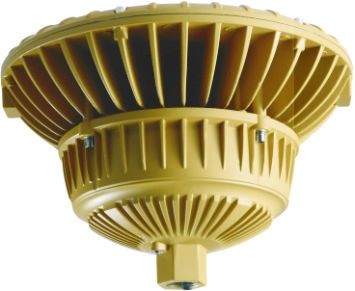

Commercial Dimmable High Bay LED Lighting NEW-FBG-150W LED Lamp Fixture

Commercial Dimmable High Bay LED Lighting NEW-FBG-150W LED Lamp Fixture

explosion proof lighting

industrial explosion proof lighting

Place of Origin:

China

Brand Name:

HKV

Certification:

CE, Ex, ATEX, IECEx, WF2

Model Number:

NEW-FBG-150W

Contact Us

Request A Quote
Product Details
Model Name:
NEW-FBG-150W
Input Voltage:
AV90-265C
Power Factor:
0.96
Power:
150W
Lumen:
110-130lm/W
CCT:
2700-6500k
CRI:
85
Operating Temperature:
-35℃ To +40℃
IP:
IP65
Liifespan:
50000h
Payment & Shipping Terms
Minimum Order Quantity
100
Price
Negotiated
Packaging Details
1pc/carton
Delivery Time
30~50days according to order quantity
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
10000000 per a year
Product Description

NEW-FBG-150W led lamp for explosive proof 130lm/W led light for environment dangerous



1. specification

Model Name NEW-FBG-150W
Input voltage AC90-265V
Power frequency 50/60Hz
Power factor 0.96
Watte 150W
Lumen 16500lm
Luminous Efficiency 110-130lm/w
CCT 2700-3500K 3500-5000K 5000-6500K
CRI Ra>=85
Operating Temperature -30℃ to 45℃
IP IP65
Anti-corrosion WF2
Lifespan >50000h
Certification EX, IECEx, ATEX, CE, WF2





2. Products Description

A) Body in die-casting copper-free aluminum alloy, treated by electrostatic spraying. with good performance of high temperature resistance

and climate resistance. Tempered glass with good transmittancy.



B) Driver: Isolation class I, protection OPP / OVP / SCP / OTP, Wide input voltage 90-265VAC, built-in active PFC>0.96, THD<15%.

Surge Protection 10KV / 6KV / 4KV.



C) LED SOURCE: LED light source with diffirent possibilities if temperature of the color.

Standard natural white color 4000K

Execution on request also with 3000K,6000K.

High Efficient of performance chromatic CRI>85, lifespan>50000h

Commercial Dimmable High Bay LED Lighting NEW-FBG-150W LED Lamp Fixture 0





3. Install performance

Different Install according to the actural use.

Commercial Dimmable High Bay LED Lighting NEW-FBG-150W LED Lamp Fixture 1Commercial Dimmable High Bay LED Lighting NEW-FBG-150W LED Lamp Fixture 2



4. Packing Information

N.W.: 14.2kg
Inner carton size: 34*34*27cm
Outer carton size: 70*35*29 (2pcs/ctn)
G.W.: 30kg/ctn



5. Application

This light used in the olifiled, chemical industry, steel industry, power port, petroleum etc. Harsh environment, moist area Zone1 Zone 2

Gas explosive environment: Group IIA, IIB, IIC. Temperature class: T5 to T6

Commercial Dimmable High Bay LED Lighting NEW-FBG-150W LED Lamp Fixture 3



6. Company Information

Chengdu HKV Electronic Technology Co.,Ltd., established in 2016. We are located in Chengdu City of Sichuan Province. We are professional on R&D, manufacture and offer quality outdoor & industrial LED lighting. HKV committed to provide professional solutions and technical service to customers. Our main R&D engineers have more than 10 years experience in the Led lighting.

HKV strictly complies with ISO-9001 and the workshop is managed according to the 7S site management system.



HKV main products are LED explosion proof light, emergency light, street light , high bay light, Led food light, tunnel light, .etc. HKV is one of the best manufacturers as well as a professional energy saving solutions provider of LED industrial lighting in China. We are welcome OEM & ODM products.

HKV takes quality as superiority and offer excellent pre-sale support and after-sale services. HKV not only provides customers with the high quality products with competitive price, but also offers the corresponding solutions.
