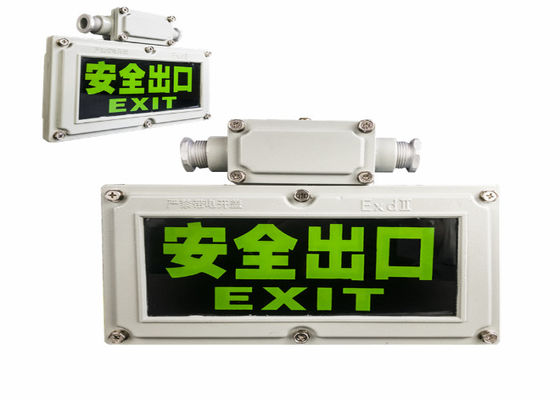

ATEX Approved 5W Explosion Proof Emergency Light Exit Signs

ATEX Approved 5W Explosion Proof Emergency Light Exit Signs

5W Explosion Proof Emergency Light

ATEX Approved Explosion Proof Emergency Light

5W explosion proof emergency exit lights

Place of Origin:

CHINA

Brand Name:

HKV

Certification:

ATEX CE ROHS FCC

Model Number:

HKV-AA-ELB1-6W

Contact Us

Request A Quote
Product Details
Item:
Explosion Proof Emergency Light
CCT:
6000K (Daylight Alert)
Input Voltage(V):
AC 85-165V
Material:
Aluminum Alloy
Frequency:
50/60Hz(applied For 47-63 Hz)
Emergency Start:
0.3s
Net Weight::
2kg
Working Temperature:
-55 - 60
Warranty(Year):
3-Year
Color:
Yellow/White
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Depends on customer requirment
Delivery Time
7-20 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
10000PCS per month
Product Description



ATEX Approved Emergency Light Exit Signs Explosion Proof Emergency Light



What are explosion proof lights?



Explosion proof lights are high resistance light which can work in harsh condition zones such as railways, coal mines, factories, manufacturing sites,and other similar areas. Most explosion proof lighting is being manufactured using LED technology by top LED manufacturers. This is happening because LED lights are more energy saving & eco-friendly as compared to other bulbs.

The deference between Anti proof lamp and general lamp: For explosion proof light, its features: waterproof,dust proof, prevent fire gas entering, there is anti explosion mark on the lamp housing cover.



Product Features:



Shell compact structure,high density material strength,Explosion-proof performance,the surface of plastic power adhesion ability with good anti-corrosion.The surface smooth,elegant appearance;



Built in normal condition and auto-lighting while accident happened or power tic ally in normal condition and auto-lighting while accident happened or power is failure conditions.



Inducing signals can be selected by users.
LED lighting diode,is in low consumption,the life can be up to 1000 hours long emergency time and it is no maintenance.

ATEX Approved 5W Explosion Proof Emergency Light Exit Signs 0

ATEX Approved 5W Explosion Proof Emergency Light Exit Signs 1

ATEX Approved 5W Explosion Proof Emergency Light Exit Signs 2

Product Description
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category IIA, II B and II C where the temperature classification is T1-T6.
3. Hazardous zone : 20. 21. and 22
4. Flammable dust atmosphere.
5. widely used in the fields of oil, chemical industry , spaceflight ,war industry and so on.



ATEX Approved 5W Explosion Proof Emergency Light Exit Signs 3



ATEX Approved 5W Explosion Proof Emergency Light Exit Signs 4



ATEX Approved 5W Explosion Proof Emergency Light Exit Signs 5



ATEX Approved 5W Explosion Proof Emergency Light Exit Signs 6



ATEX Approved 5W Explosion Proof Emergency Light Exit Signs 7





Techinical Parameters:


Meet a criterion:G3B3836.1, GB3836.2, GB12476.1, IEC60079-0,IEC60079-1, IEC61241-1, EN60079-0, EN60079-1, EN61241-1
Ex---proof Mark:Exd II BT6 Gb, Exd II CT6 Gb, DIP A21 TA, T6.
Rated voltage: AC220V
Ligting Source: Plz Refer the Selection Table.
Protection grade:IP65
Corrosion-proof grade:WF1,WF2
Inlet Thread: G3/4"
Cable outer dia:9mm~14mm



Installation Process

ATEX Approved 5W Explosion Proof Emergency Light Exit Signs 8





Applications:


Suitable for explosive gas environment Zone1 and Zone2.
Suitable for IIA,IIB,IIC explosive gas environment.
Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
Can be used in the environment of temperature group for T1~T6.
Lighint source: LED.
Mainly used for exit signs and direction in emergency conditions.
Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.





Product Specification



Product Name Exit Signs Explosion Proof Emergency Light
Power Consumption 5W
Input Voltage Applied for 85-265V
Frequency 50/60Hz(applied for 47-63 Hz)
Beam Angle 45°/60°/90°/120°/140°
Explosion-proof Grade Ex dIIB T6
Corrosion-proof Grade WF1
Color Temperature(K) Warm white:2700-4000K; Pure white:5000-6500K
Power Factor >0.95
Light Efficiency >100lm/w
Ambient Temperature -55°C~+60°C
Lifespan >50000Hrs
Emergency start 0.3s
Material Aluminium Alloy
Dimensions 270*210*85mm
Net weight 2KG



ATEX Approved 5W Explosion Proof Emergency Light Exit Signs 9
