Place of Origin:
SICHUAN , CHINA
Brand Name:
HKV
Model Number:
LD-BLD4A-100
Contact Us
ITEM | LD-BLD4A-100 | ||||
LED | 5050x100units led beads | 5050x100units led beads | 5050x100units led beads | 5050x100units led beads | 5050x100units led beads |
Panel | Built-in 30A protection board function, support 6V /180W photovoltaic system | ||||
Polysilicon70W AClass | Polysilicon80W AClass | Polysilicon100W AClass | Polysilicon120W AClass | Polysilicon140W AClass | |
Battery | Support ≤3.2V/120AH battery system | ||||
3.2V/60AHLiFePO4 | 3.2V/70AHLiFePO4 | 3.2V/80AHLiFePO4 | 3.2V/100AHLiFePO4 | 3.2V/120AHLiFePO4 | |
Lumen | 6500lm | 7600lm | 9200lm | 11000lm | 13800lm |
Mounting height | 6-7Meter | 6-8Meter | 7-9Meter | 8-10Meter | 9-12Meter |
Discharge actual power | 1gear | 2gear | 3gear | 4gear | 5gear |
28W | 33W | 39W | 48W | 60W | |
Installation distance | 20-40Meter | ||||
CCT | 3000K-6500K | ||||
Charge time | 4-6H | ||||
Working time | 2-5 rainy days, 12 hours of intelligent power regulation, APMS adaptive power management, brighter on sunny days, 365 days of overnight light on rainy days. | ||||
Control method | Light control + intelligent power | ||||
Shell Material | Aluminum | ||||
Shell color | Silver Gray | ||||
Lamp Size | 550*225*90mm | ||||
Outer box size | 515*245*575 mm(4set/box)
|
Applicable
Widely used in various roads, squares, gardens, greenways and other regional lighting
Product Features
1, solar panels: polycrystalline silicon, conversion rate> 18%, using high strength and high light transmission rate of low iron, suede tempered glass, increase the sunlight radiation rate, light transmission rate of up to 92% or more, efficient low light charging response, 20 years power decay rate of less than 10%, with wind and hail anti-corrosion performance, sealed waterproof, efficient multi-functional junction box, can adapt to a variety of complex and harsh climatic conditions under normal use.
2, battery: 3.2V using deep cycle power battery, sensitive charging and discharging, can adapt to -40 ~ 60 ° C environment stable work, built-in lamps and lanterns integrated design, easy installation, configuration of patented technology, efficient and excellent intelligent control, APMS adaptive power management system, automatic maximum power tracking performance than the ordinary controller conversion rate of more than 20%, at the same time than the ordinary controller energy saving 80% More than, with overcharge, over discharge; light control, time control, waterproof and other practical functions, can ensure brighter on sunny days, cloudy days, rainy days, 365 days of continuous light, protection level IP67.
3, lamps and lanterns: the shell is made of high purity aluminum, using high transmission lens integrated design, strong institutions, in the earthquake waterproof lightning and other aspects of outstanding performance, waterproof protection level of IP65, to ensure that the lamps and lanterns in a complex environment and stable work, using the United States of America Bridgelux super bright high lumen LED chip, a single chip power 2W, high color rendering index, color temperature: 3000-6500K ± 200K no radiation Pollution, 10000 hours light decay <5%,
service life> 50000 hours

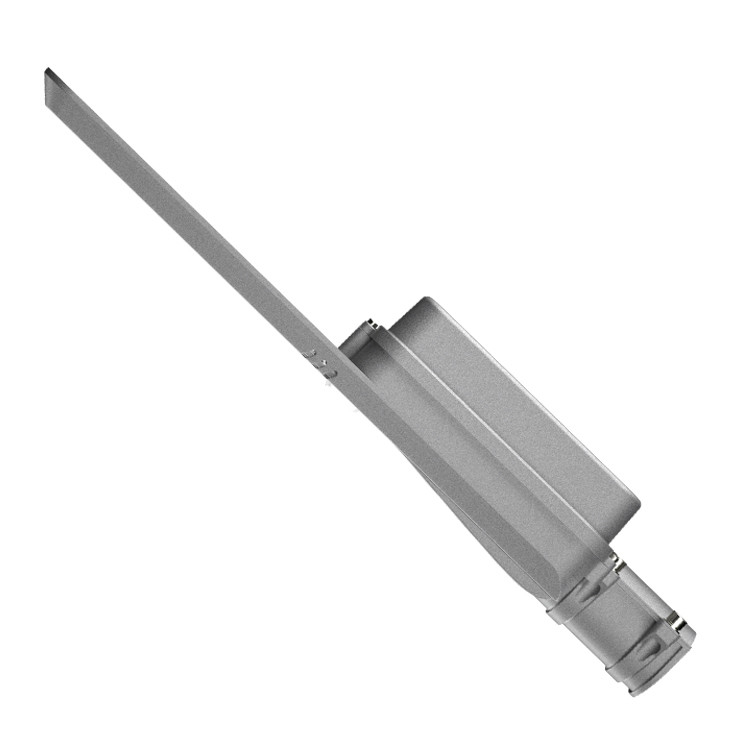

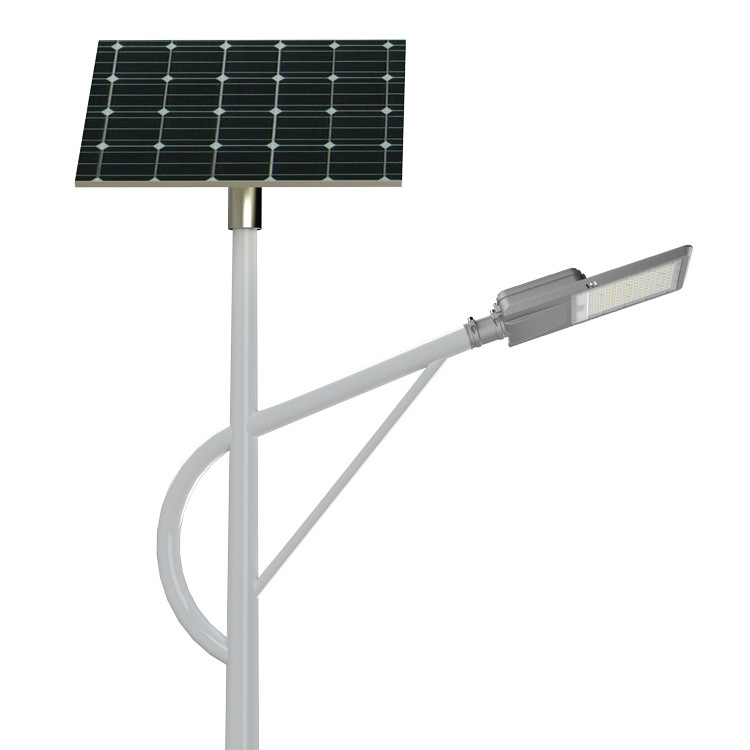

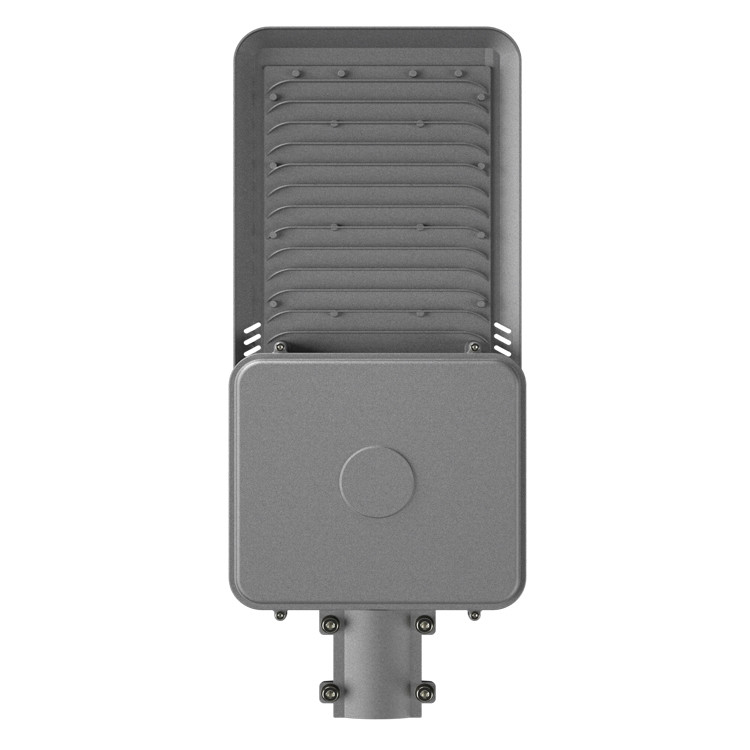

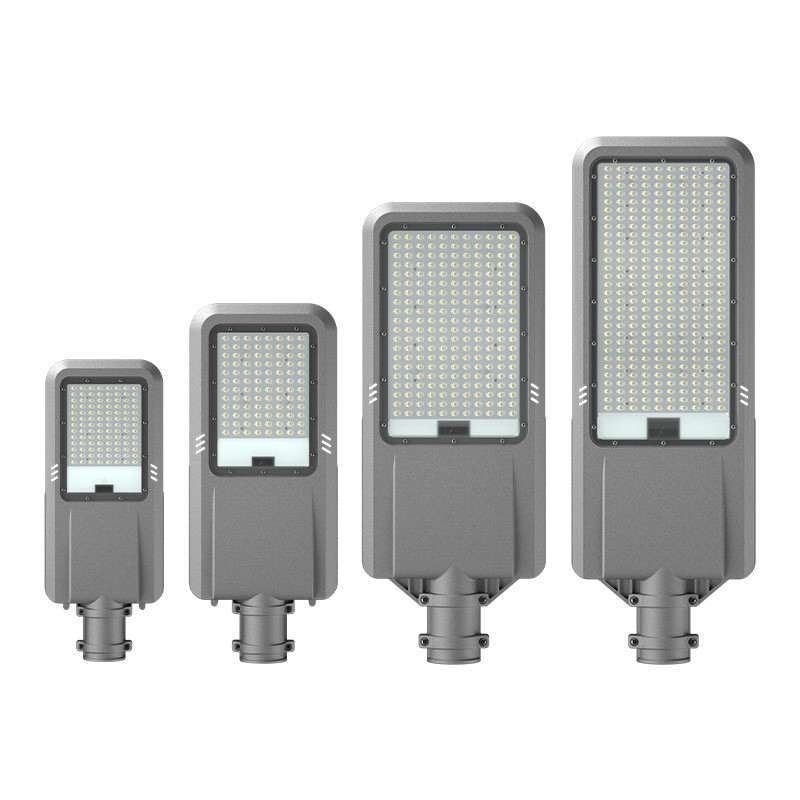

Product Photo
Company Information
Chengdu HKV Electronic Technology Co., Ltd., established in 2016. We are located in Chengdu City of Sichuan Province. We are professional on R&D, manufacture and offer quality outdoor & industrial LED lighting.HKV committed to provide professional solutions and technical service to customers. Our main R&D engineers have more than 10 years experience in the Led lighting. HKV strictly complies with ISO-9001 and the workshop is managed according to the 7S site management system. HKV main products are LED explosion proof light, emergency light, street light , high bay light, Led food light, tunnel light, .etc. HKV is one of the best manufacturers as well as a professional energy saving solutions provider of LED industrial lighting in China. We are welcome OEM & ODM products. HKV takes quality as superiority and offer excellent pre-sale support and after-sale services. HKV not only provides customers with the high quality products with competitive price, but also offers the corresponding solutions.
Mission: Not just LED manufacturer, but one professional LED solution provider.
FAQ
1.What's the payment method?
Mainly Alibaba online credit card payment, T/T, Paypal three payment methods, in addition, WeChat and Alipay transfer, a variety of options.
2. Whether it is a manufacturer
We are a manufacturer with complete production and product testing equipment. The factory is located in Chengdu, Sichuan. Customers are welcome to visit the factory.
3. Is there an agent in that country?
There are currently no agents, but there are several customers who are considering negotiation, hoping to find a suitable agent in the later stage to provide customers with the best quality and most convenient services.
4.What is the minimum order quantity?
There is no special requirement for the minimum order quantity, it is negotiated.
